Product Summary
The 2SC5967 is an Ultrahigh-Definition CRT Display suitable for Horizontal Deflection Output Applications.
Parametrics
2SC5967 absolute maximum ratings: (1)Collector-to-Base Voltage, VCBO: 1700 V; (2)Collector-to-Emitter Voltage, VCEO: 800 V; (3)Emitter-to-Base Voltage, VEBO: 5V; (4)Collector Current, IC: 20 A; (5)Collector Current (Pulse), ICP: 40 A; (6)Collector Dissipation, PC: 180W; (7)Junction Temperature, Tj: 150℃; (8)Storage Temperature, Tstg: -55 to +150℃.
Features
2SC5967 features: (1)High-speed; (2)High breakdown voltage (VCBO=1700V); (3)High reliability (Adoption of HVP process); (4)Adoption of MBIT process.

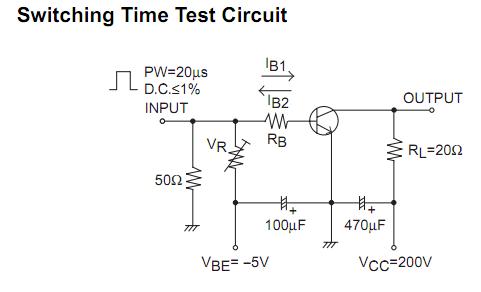

Diagrams
