Product Summary

The CLAA070LC0ACW is a 7 inch color TFT-LCD(Thin Film Transistor Liquid Crystal Display)module. Composed of LCD panel,driver ICs,control circuit,and LED backlight, it produces a high resolution image that is composed of 800×480 pixel elements in a stripe arrangement display 262K colors by 6 Bit R.G.B signal input.

Parametrics

CLAA070LC0ACW absolute maximum ratings: (1)Input Voltage, Vcc: -0.5 to 5.0V; (2)Signal Input Voltage, DCLK,DE,R0,G0,B0~R5,G5,B5: -0.5 to Vcc+0.5V; (3)Static Electricity, VESDc: -200 to 200V; (4)ICC Rush Current, IRUSH: 1A max; (5)Operation Temperature, Top: -30 to 85℃; (6)Storage Temperature, Tstg: -40 to 95℃.

Features

CLAA070LC0ACW features: (1)Display Area (mm): 152.4(W)×91.44(H); (2)Number of Pixels: 800(H)×3(RGB)×480(V); (3)Pixel Pitch (mm): 0.1905(H)×0.1905(V); (4)Color Pixel Arrangement: RGB vertical stripe; (5)Display Mode: Normally white; (6)Number of colors: 262,144; (7)Viewing Direction: 6 oclock; (8)Response Time (Tr+Tf): 20ms; (9)Brightness(cd/m2): 220nit(typ); (10)Viewing Angle(BL on,CR≧10): 140 degree(H)，110degree(V); (11)Electrical Interface(data): TTL; (12)Power consumption: 2.0W(Typ); (13)Outline Dimension(in mm): 165(W)×104(H)×5(D); (14)Weight(g): TBD; (15)BL unit: LED; (16)Surface Treament: Anti-Glare, Hardness:3H.

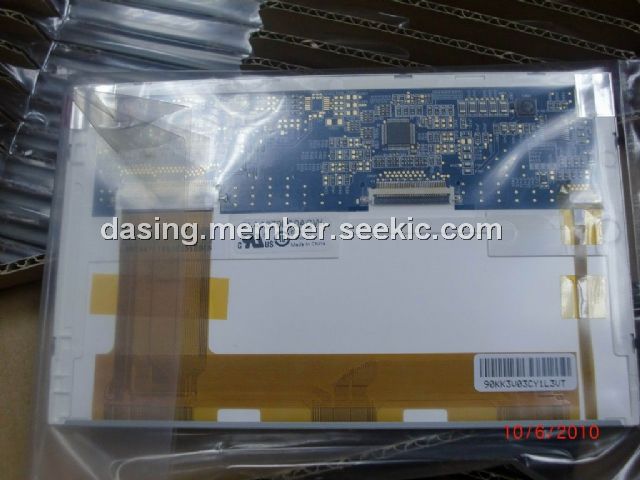

Diagrams
