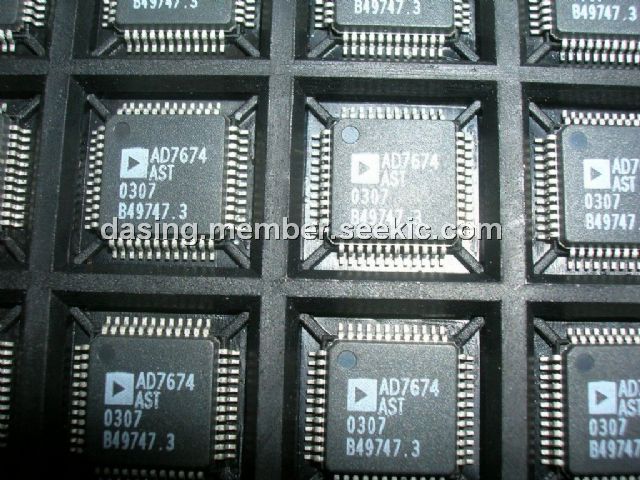

AD7674AST

fully differential analog-to-digital converter, 18BIT, 800KSPS, 48-LQFP, 5 V, 98 mW

Rated 5 Rating 5 | reviews | Write a review

Price:: US $40.00~50.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $40.00~50.00

PartNumber:: AD7674AST

Brand:: Analog Devices - ADI | Pack: DIP | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Sue ouyang's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-03-29

From Other Seller

Part Number:AD7674AST
US $40.00 - 50.00
A50L-0001-0175

US $100.00 - 100.00 / Piece
(0) Remove
HT46R47

US $0.35 - 1.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

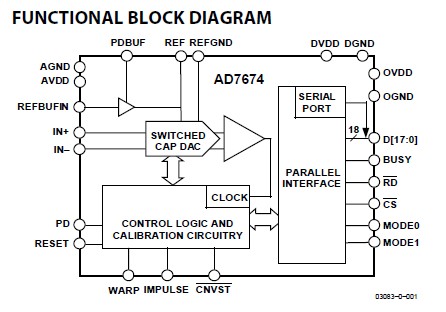

The AD7674AST is an 18-bit, 800 kSPS, charge redistribution SAR, fully differential analog-to-digital converter that operates on a single 5 V power supply. The AD7674AST contains a high speed 18-bit sampling ADC, an internal conversion clock, an internal reference buffer, error correction circuits, and both serial and parallel system interface ports. The applications of the AD7674AST include: CT scanners, High dynamic data acquisition, Geophone and hydrophone sensors, ∑-△ replacement (low power, multichannel), Instrumentation, Spectrum analysis, Medical instruments.

Parametrics

AD7674AST absolute maxing ratings: (1)Analog Inputs IN+2, IN–2, REF, REFBUFIN, REFGND to AGND: AGND – 0.3 V to AVDD + 0.3 V; (2)Ground Voltage Differences AGND, DGND, OGND: ±0.3 V; (3)Supply Voltages AVDD, DVDD, OVDD: –0.3 V to +7 V; (4)Internal Power Dissipation: 700 mW; (5)Internal Power Dissipation: 2.5 W; (6)Junction Temperature: 150℃; (7)Storage Temperature Range: –65℃ to +150℃; (8)Lead Temperature Range(Soldering 10 sec): 300℃.

Features

AD7674AST features: (1)18-bit resolution with no missing codes; (2)No pipeline delay (SAR architecture); (3)Differential input range: ±VREF (VREF up to 5 V); (4)Throughput: 800 kSPS (Warp mode), 666 kSPS (Normal mode), 570 kSPS (Impulse mode); (5)INL: ±2.5 LSB max (±9.5 ppm of full scale); (6)Dynamic range: 103 dB typ (VREF = 5 V); (7)S/(N+D): 100 dB typ @ 2 kHz (VREF = 5 V); (8)Parallel (18-,16-, or 8-bit bus) and serial 5 V/3 V interface; (9)SPI/QSPI/MICROWIRE/DSP compatible; (10)On-board reference buffer; (11)Single 5 V supply operation; (12)Power dissipation: 98 mW typ @ 800 kSPS, 78 mW typ@ 500 kSPS (Impulse mode), 160 μW @ 1 kSPS (Impulse mode); (13)48-lead LQFP or 48-lead LFCSP package.
