Product Summary

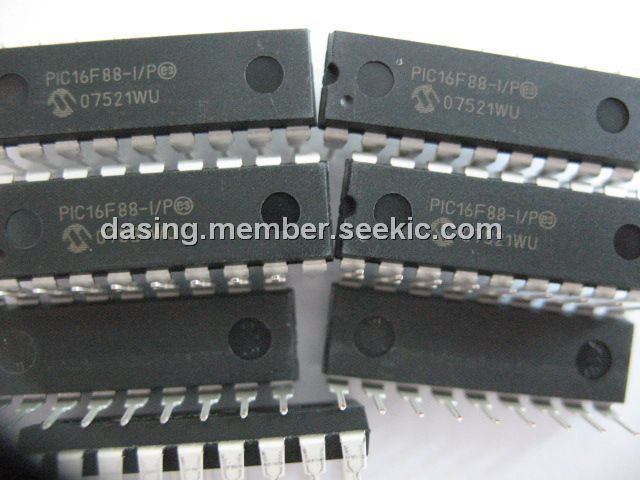

The PIC16F88-I/P is a 18 pin enhanced flash microcontroller with nano Watt technology.

Parametrics

Absolute maximum ratings: (1)Ambient temperature under bias: -55℃ to +125℃; (2)Storage temperature: -65℃ to +150℃; (3)Voltage on VDD with respect to VSS: -0.3 to +7.5V; (4)Voltage on MCLR with respect to VSS: -0.3 to +14V; (5)Total power dissipation: 1W; (6)Maximum current out of VSS pin: 200 mA; (7)Maximum current into VDD pin: 200 mA; (8)Input clamp current, IIK (VI < 0 or VI > VDD): ± 20 mA; (9)Output clamp current, IOK (VO < 0 or VO > VDD): ± 20 mA; (10)Maximum output current sunk by any I/O pin: 25 mA; (11)Maximum output current sourced by any I/O pin: 25 mA; (12)Maximum current sunk by PORTA: 100 mA; (13)Maximum current sourced by PORTA: 100 mA; (14)Maximum current sunk by PORTB: 100 mA; (15)Maximum current sourced by PORTB: 100 mA.

Features

Features: (1)100,000 erase/write cycles Enhanced FLASH program memory typical; (2)1,000,000 typical erase/write cycles EEPROM data memory typical; (3)EEPROM Data Retention: > 40 years; (4)Processor read/write access to program memory; (5)Low-Voltage Programming; (6)In-Circuit Debugging via two pins; (7)Wide operating voltage range: 2.0V to 5.5V.

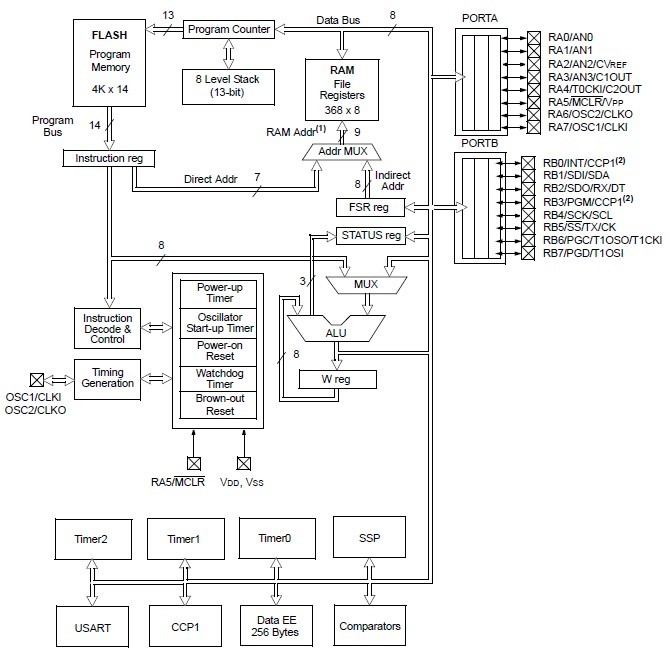

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
PIC16F88-I/P
PIC16F88-I/P
Microchip Technology
8-bit Microcontrollers (MCU) 7KB 368 RAM 16 I/O
Data Sheet
0-1: $1.95
1-10: $1.56
10-25: $1.51
25-100: $1.45
PIC16F88-I/PREL
PIC16F88-I/PREL
Other

Data Sheet
Negotiable
