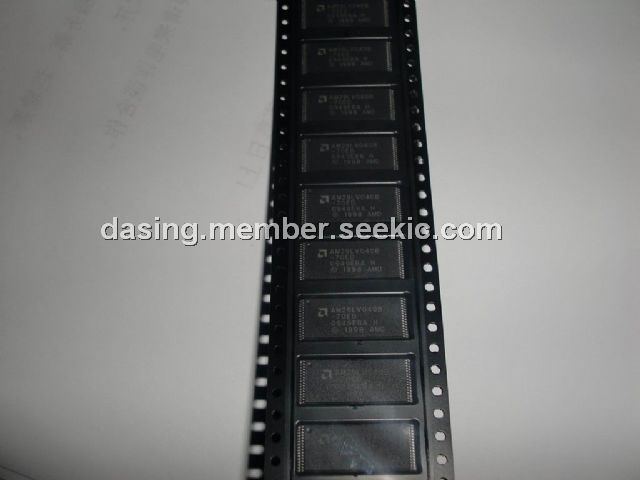

Product Summary

The AM29LV040B-70ED is a single power supply, 4 Mbit, 3.0 Volt-only Flash memory device organized as 524,288 bytes. The data appears on DQ0-DQ7. The AM29LV040B-70ED is available in 32-pin PLCC and 32-pin TSOP packages. All read, erase, and program operations are accomplished using only a single power supply. The AM29LV040B-70ED can also be programmed in standard EPROM programmers. The AM29LV040B-70ED offers access times of 60, 70, 90, and 120 ns allowing high speed microprocessors to operate without wait states. To eliminate bus contention, the AM29LV040B-70ED has separate control pins—chip enable (CE#), write enable (WE#), and output enable (OE#)—to control normal read and write operations. The AM29LV040B-70ED requires only a single power supply (2.7V–3.6V) for both read and write functions. Internally generated and regulated voltages are provided for the program and erase operations.

Parametrics

AM29LV040B-70ED absolute maximum ratings: (1)Plastic Packages: –65℃ to +150℃; (2)Ambient Temperature with Power Applied: –65℃ to +125℃; (3)Voltage with Respect to Ground VCC: –0.5 V to +4.0 V; (4)A9, OE#: –0.5 V to +12.5 V; (5)All other pins: –0.5 V to VCC+0.5 V; (6)Output Short Circuit Current: 200 mA.

Features

AM29LV040B-70ED features: (1)Single power supply operation; (2)Manufactured on 0.32 μm process technology; (3)High performance; (4)Ultra low power consumption (typical values at 5 MHz); (5)Flexible sector architecture; (6)Minimum 1,000,000 erase cycles guaranteed; (7)20-year data retention at 125℃; (8)Compatibility with JEDEC standards; (9)Erase Suspend/Resume; (10)Unlock Bypass Program Command; (11)Embedded Algorithms.

Diagrams

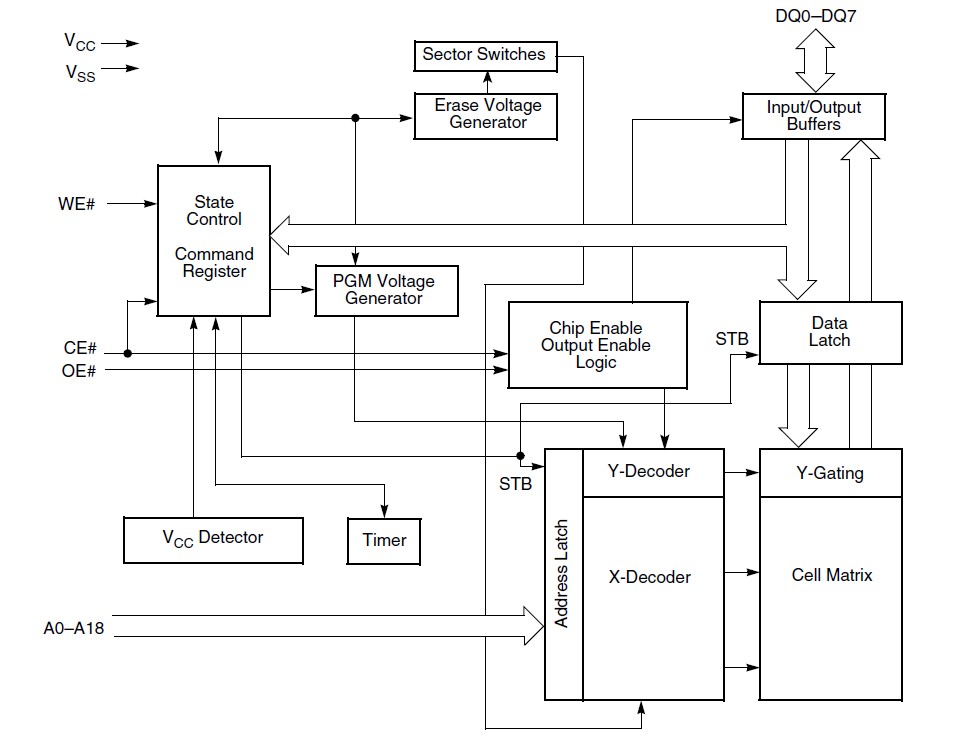

AM29LV040B-70ED block diagram
