Product Summary

The BD237STU is a medium power switch.

Parametrics

BD237STU absolute maximum ratings: (1)Collector-Base Voltage=100V; (2)Collector-Emitter Voltage=80V; (3)Collector-Emitter Voltage=100V;(4)Emitter-Base Voltage,5V; (5)Collector Current (DC),2A; (6)Collector Current (Pulse),6A; (7)Collector Dissipation (TC=25℃),25W; (8) Junction Temperature,150℃.

Features

BD237STU features:(1)Collector-Emitter Sustaining Voltage:80V; (2)Collector Cut-off Current:100μA;(3)Emitter Cut-off Current:1mA; (4)Collector-Emitter Saturation Voltage:0.6V; (5)Base-Emitter ON Voltage:1.3V; (6)Current Gain Bandwidth Product:3MHz.

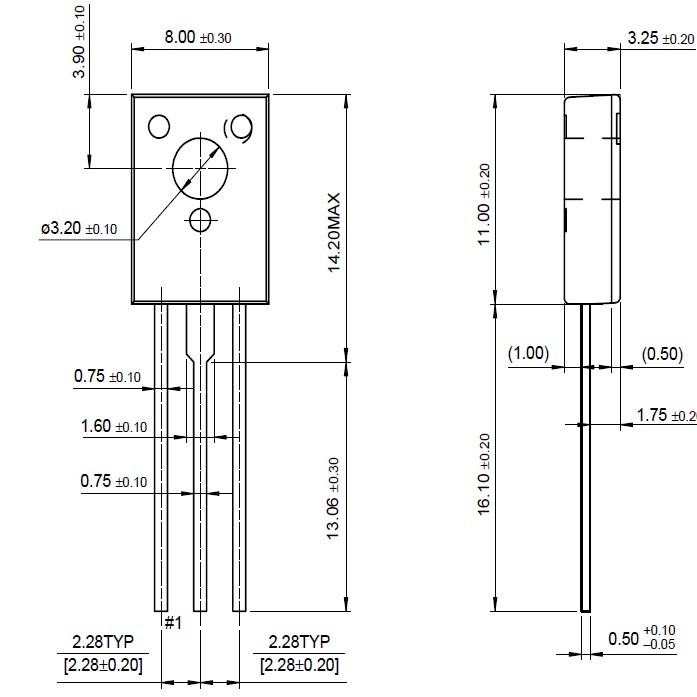

Diagrams
