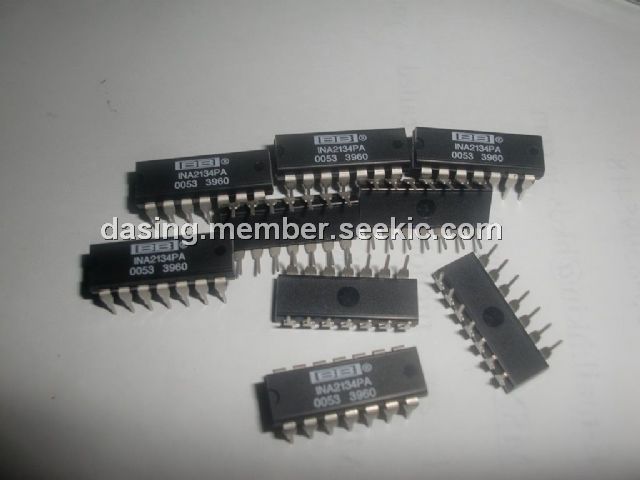

Product Summary
The INA2134PA is the audio differential line receiver consisting of high performance op amps with onchip precision resistors. The INA2134PA is fully specified for high performance audio applications and has excellent ac specifications, including low distortion (0.0005% at 1kHz) and high slew rate (14V/ms), assuring good dynamic response. In addition, wide output voltage swing and high output drive capability allow use in a wide variety of demanding applications. The dual version of the INA2134PA features completely independent circuitry for lowest crosstalk and freedom from interaction, even when overdriven or overloaded.
Parametrics
INA2134PA absolute maximum ratings: (1)Supply Voltage, V+ to V–: 40V; (2)Input Voltage Range: ±80V; (3)Output Short-Circuit (to ground)(2): Continuous; (4)Operating Temperature: –55 to +125℃; (5)Storage Temperature: –55 to +125℃; (6)Junction Temperature: +150℃; (7)Lead Temperature (soldering, 10s): +300℃.
Features
INA2134PA features: (1)SINGLE AND DUAL VERSIONS; (2)LOW DISTORTION: 0.0005% at f = 1kHz; (3)HIGH SLEW RATE: 14V/μs; (4)FAST SETTLING TIME: 3ms to 0.01%; (5)WIDE SUPPLY RANGE: ±4V to ±18V; (6)LOW QUIESCENT CURRENT: 2.9mA max; (7)HIGH CMRR: 90dB; (8)FIXED GAIN = 0dB (1V/V); (9)PACKAGES—SINGLE: 8-PIN DIP, SO-8; (10)DUAL: 14-PIN DIP, SO-14.

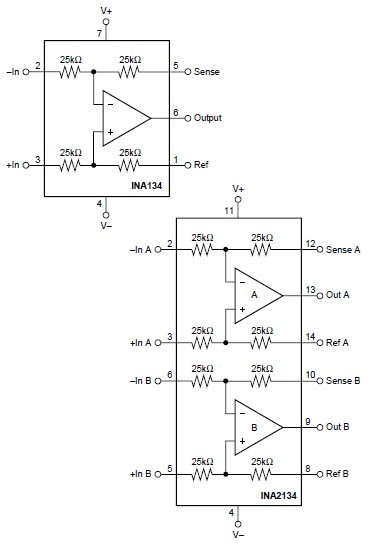

Diagrams
