LMP7701MF

amplifier, SOT23-5, 2 kV

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.30~3.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.30~3.00

PartNumber:: LMP7701MF

Brand:: National Semiconductor - NS | Pack: SOT | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Sue ouyang's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-06-30

From Other Seller

Part Number:LMP7701MF
US $1.30 - 3.00
EKZE250ELL152MK25S

US $0.10 - 1.00 / Piece
(0) Remove
AT45DB161D-SU

US $1.50 - 3.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

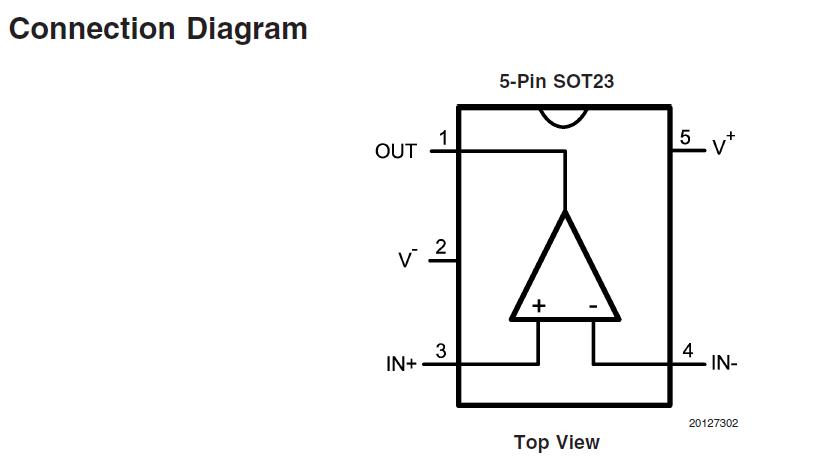

The LMP7701MF is a single, low offset voltage, rail-to-rail input and output precision amplifier with a CMOS input stage and a wide supply voltage range. It is part of the LMP. precision amplifier family and is ideal for sensor interface and other instrumentation applications. The LMP7701MF is built utilizing VIP50 technology, which allows the combination of a CMOS input stage and a 12V common mode and supply voltage range. This makes it a great choice in many applications where conventional CMOS parts cannot operate under the desired voltage conditions. The LMP7701MF has a rail-to-rail input stage that significantly reduces the CMRR glitch commonly associated with rail-torail input amplifiers. This is achieved by trimming both sides of the complimentary input stage, thereby reducing the difference between the NMOS and PMOS offsets. The output of theLMP7701MF swings within 40 mV of either rail to maximize the signal dynamic range in applications requiring low supply voltage. It is offered in space saving SOT23-5.

Parametrics

LMP7701MF absolute maximum ratings: (1)ESD Tolerance, Human Body Model: 2 kV; Machine Model: 200V; (2)VIN Differential: ±300 mV; (3)Supply Voltage (VS = V+ – V-): 13.2V; (4)Voltage at Input/Output Pins: V++ 0.3V, V- - 0.3V; (5)Input Current: 10 mA; (6)Storage Temperature Range: -65℃ to +150℃; (7)Junction Temperature: +150℃; (8)Infrared or Convection (20 sec): 235℃; (9)Wave Soldering Lead Temp. (10sec): 260℃.

Features

LMP7701MF features: (1)Input offset voltage: ±200 μV (max); (2)Input bias current: 300 fA; (3)Input voltage noise: 12 nV/; (4)CMRR: 100 dB; (5)Open loop gain: 130 dB; (6)Temperature range: –40 to 125℃; (7)Unity gain bandwidth: 2.5 MHz; (8)Supply current: 715 μA; (9)Supply Voltage Range: 2.7V to 12V.
