Product Summary

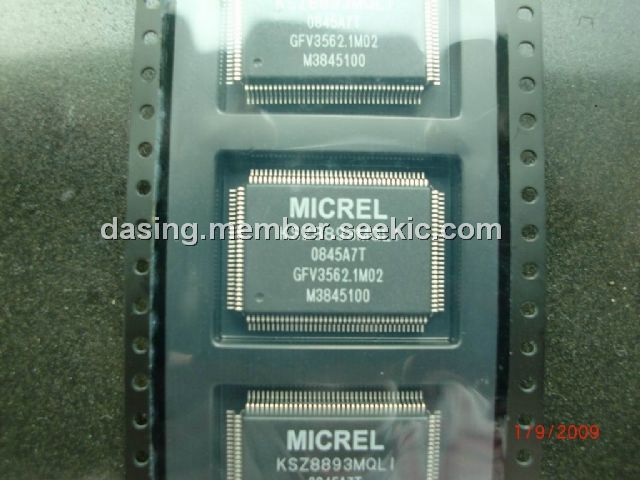

The KSZ8893MQLI is a highly integrated layer 2 managed switch. The device is designed for low port count, cost-sensitive 10/100 Mbps switch systems. The KSZ8893MQLI offers an extensive feature set that includes rate limiting, tag/port-based VLAN, QoS priority, management, management information base (MIB) counters, RMII/MII/SNI, and CPU control/data interfaces to effectively address both current and emerging Fast Ethernet applications. The KSZ8893MQLI contains two 10/100 transceivers with patented mixed-signal low-power technology, three media access control (MAC) units, a highspeed non-blocking switch fabric, a dedicated address lookup engine, and an on-chip frame buffer memory.
Parametrics
KSZ8893MQLI absolute maximum ratings: (1)Supply Voltage (VDDATX, VDDARX, VDDIO): –0.5V to +4.0V; (2)Input Voltage (all inputs): –0.5V to +5.0V; (3)Output Voltage (all outputs): –0.5V to +4.0V; (4)Lead Temperature (soldering, 10sec.): 270℃; (5)Storage Temperature (Ts): –55 to +150℃.
Features
KSZ8893MQLI features: (1)3rd generation switch with three MACs and two PHYs fully compliant with IEEE 802.3u standard; (2)Non-blocking switch fabric assures fast packet delivery by utilizing an 1K MAC address lookup table and a store-and-forward architecture; (3)Full duplex IEEE 802.3x flow control (PAUSE) with force mode option; (4)Half-duplex back pressure flow control; (5)HP Auto MDI-X for reliable detection of and correction for straight-through and crossover cables with disable and enable option; (6)Micrel LinkMDTM TDR-based cable diagnostics permit identification of faulty copper cabling; (7)100BASE-FX support on port ; (8)MII interface supports both MAC mode and PHY mode; (9)RMII interface support with external 50MHz system clock; (10)7-wire serial network interface (SNI) support for legacy MAC; (11)Comprehensive LED Indicator support for link, activity, full/half duplex and 10/100 speed.
Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
KSZ8893MQLI |
IC MANAGED SWITCH 10/100 128PQFP |
Data Sheet |
|
|
||||||||||||||||
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||||
KSZ8001L |
IC TXRX PHY 10/100 3.3V 48-LQFP |
Data Sheet |
|
|
||||||||||||||||
KSZ8001L TR |
TXRX 10/100 3.3V 48-LQFP |
Data Sheet |
|
|
||||||||||||||||
KSZ8001LA2 |
TXRX 10/100 LINKMD 3.3V 48-LQFP |
Data Sheet |
Negotiable |
|
||||||||||||||||
KSZ8001LA2TR |
TXRX 10/100 LINKMD 3.3V 48-LQFP |
Data Sheet |
Negotiable |
|
||||||||||||||||
KSZ8001LA3 |
TXRX 10/100 LINKMD 3.3V 48-LQFP |
Data Sheet |
Negotiable |
|
||||||||||||||||
KSZ8001LA3TR |
TXRX 10/100 LINKMD 3.3V 48-LQFP |
Data Sheet |
Negotiable |
|
