Product Summary
The MURB1620CTT4G is a switch mode power rectifier. It is designed for use in switching power supplies, inverters and as free wheeling diodes.
Parametrics
MURB1620CTT4G absolute maximum ratings: (1)Peak Repetitive Reverse Voltage, VRRM: 200 V; (2)Working Peak Reverse Voltage, VRWM: 200 V; (3)DC Blocking Voltage, VR: 200 V; (4)Average Rectified Forward Current, IF(AV): 8.0A; (Rated VR, TC = 150℃) Total Device: 16A; (5)Peak Repetitive Forward Current (Rated VR, Square Wave, 20 kHz, TC = 150℃), IFM: 16 A; (6)Non.Repetitive Peak Surge Current (Surge Applied at Rated Load Conditions Halfwave, Single Phase, 60 Hz), IFSM: 100 A; (7)Operating Junction and Storage Temperature Range, TJ, Tstg: -65 to +175℃.
Features
MURB1620CTT4G features: (1)Package Designed for Power Surface Mount Applications; (2)Ultrafast 35 Nanosecond Recovery Times; (3)175℃ Operating Junction Temperature; (4)Epoxy Meets UL 94 V-0 @ 0.125 in; (5)High Temperature Glass Passivated Junction; (6)Low Leakage Specified @ 150℃ Case Temperature; (7)Short Heat Sink Tab Manufactured - Not Sheared!; (8)Similar in Size to Industrial Standard TO-220 Package; (9)Pb-Free Packages are Available.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

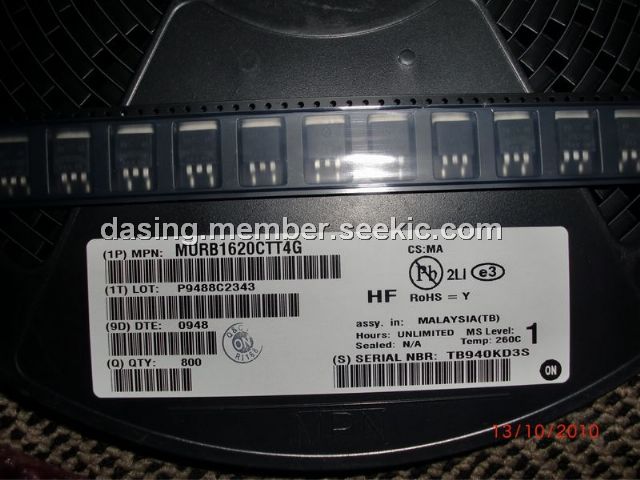

 MURB1620CTT4G |
ON Semiconductor |
Rectifiers 200V 16A Ultrafast Common Cathode |
Data Sheet |
|
|
||||||||||||||||||||||
