Product Summary

The LDB21836M20C-001 is a Chip Multilayer Hybrid Balun.

Parametrics

LDB21836M20C-001 absolute maximum ratings: (1)BALUN, 836MHZ, 200OHM, 0805 CASE; (2)Insertion Loss: 1.1dB; (3)Frequency: 836.5MHz; (4)Impedance: 200ohm; (5)Operating Temperature Max:85℃; (6)Operating Temperature Min:-40℃; (7)Package / Case:0805; (8)Termination Type: SMD.

Diagrams

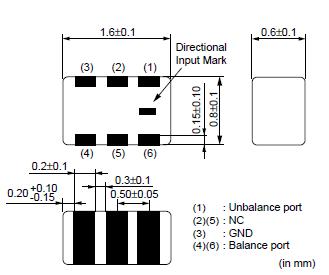

LDB21836M20C-001 dimension diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
LDB21836M20C-001
LDB21836M20C-001
Murata
Signal Conditioning 1206 836MHz 200ohm Baluns
Data Sheet
0-1: $0.38
1-50: $0.25
50-100: $0.20
100-500: $0.14
