Product Summary
The MC33204DTBR2G is an operational amplifier. It provides rail-to-rail operation on both the input and output. The inputs can be driven as high as 200 mV beyond the supply rails without phase reversal on the outputs, and the output can swing within 50 mV of each rail. This rail-to-rail operation enables the user to make full use of the supply voltage range available. The MC33204DTBR2G is designed to work at very low supply voltages (± 0.9 V) yet can operate with a supply of up to +12 V and ground. Output current boosting techniques provide a high output current capability while keeping the drain current of the amplifier to a minimum. Also, the combination of low noise and distortion with a high slew rate and drive capability make the MC33204DTBR2G ideal amplifier for audio applications.
Parametrics
MC33204DTBR2G absolute maximum ratings: (1)Supply Voltage (VCC to VEE), VS: +13 V; (2)Common Mode Input Voltage Range, VCM: VCC + 0.5 V to; (3)VEE - 0.5 V; (4)Maximum Junction Temperature, TJ: +150℃; (5)Storage Temperature, Tstg: 65 to +150℃.
Features
MC33204DTBR2G features: (1)Low Voltage, Single Supply Operation (+1.8 V and Ground to +12 V and Ground); (2)Input Voltage Range Includes both Supply Rails; (3)Output Voltage Swings within 50 mV of both Rails; (4)No Phase Reversal on the Output for Over-driven Input Signals; (5)High Output Current (ISC = 80 mA, Typ); (6)Low Supply Current (ID = 0.9 mA, Typ); (7)600Ω Output Drive Capability; (8)Extended Operating Temperature Ranges (-40 to +105℃ and -55 to +125℃); (9)Typical Gain Bandwidth Product = 2.2 MHz; (10)NCV Prefix for Automotive and Other Applications Requiring Site and Control Changes; (11)Pb-Free Packages are Available.

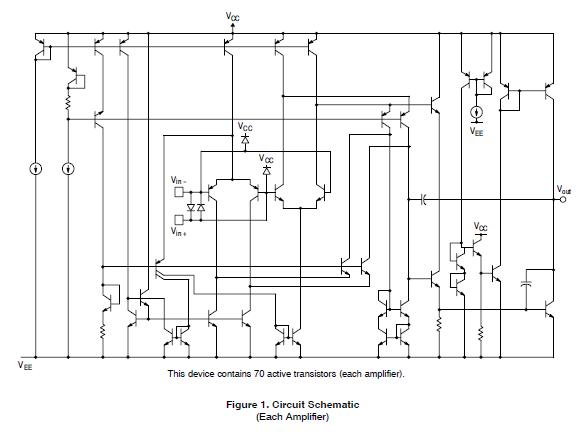

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 MC33204DTBR2G |
ON Semiconductor |
Operational Amplifiers - Op Amps 1.8-12V Quad Rail to Rail -40 to 105 Cel |
Data Sheet |
|
|
||||||||||||
