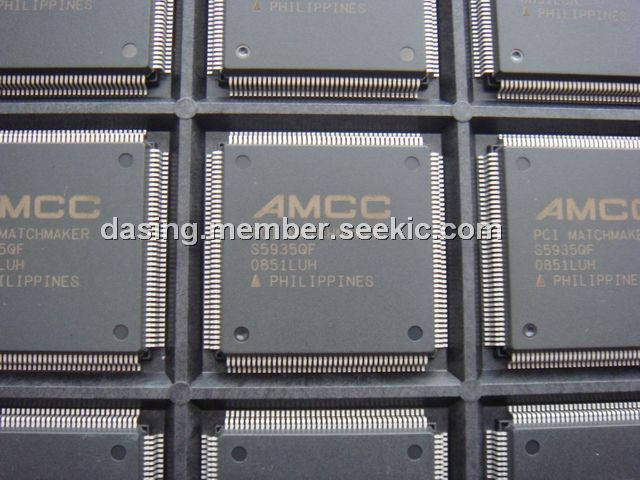

Product Summary

The S5935QF is a PCI local bus. It is an off-the-shelf, low-cost, standard product, which is PCI 2.1 compliant. It is widely used in high speed networking, digital video applications, I/O communications ports, high speed data input/output, multimedia communications, memory interfaces, high speed data acquisition, data encryption/decryption, Intel i960 interface, general purpose PCI interfacing and existent S5933 design upgrades.

Parametrics

Absolute maximum ratings: (1)Storage Temperature: –55 to 125℃; (2)Supply Voltage (VCC): –0.3 to 7.0Volts; (3)Input Pin Voltage: –0.5 to VCC + 5.0Volts; (4)Power Dissipation: 1.05Watts @33 MHz max.

Features

Features: (1)PCI 2.1 Compliant Master/Slave Device; (2)Full 132 Mbytes/sec Transfer Rate; (3)Supports new Intel 440BX/GX Chipsets; (4)Supports new WinNT Service Pack 2 & 3; (5)PCI Bus Operation DC to 33 MHz; (6)8/16/32 Bit Add-On User Bus; (7)Four Definable Pass-Thru Data Channels; (8)Two 32 Byte Internal FIFOs w/DMA; (9)Synchronous Add-On Bus Operation; (10)Mail Box Registers w/Byte Level Status; (11)Direct Mail Box Data Strobe/Interrupts; (12)Direct PCI & Add-On Interrupt Pins; (13)Optional Non-Volatile Memory Boot Loading; (14)Optional Expansion BIOS/POST Code.

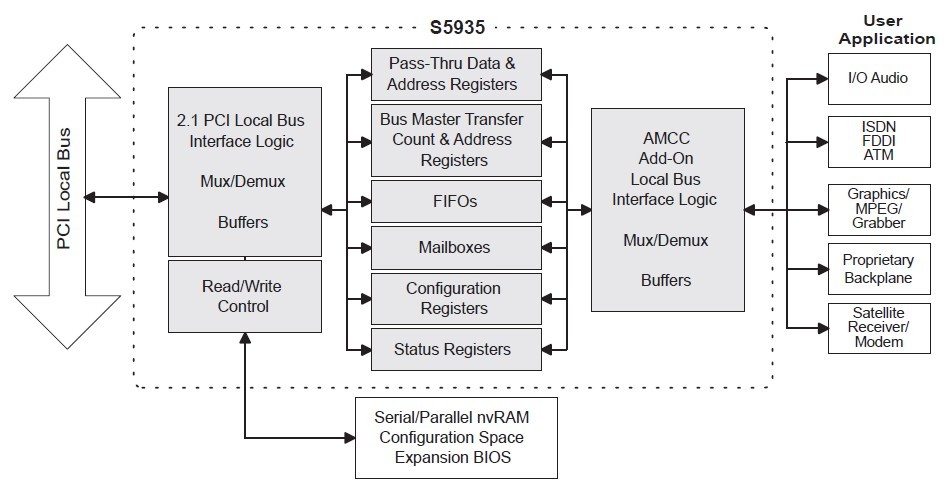

Diagrams
