Product Summary

The MAX874CPA is a 4.096V micropower voltage reference. The combination of ultra-low quiescent current and low 200mV dropout makes it ideal for battery-powered equipment. It sources and sinks up to 500μA with only 200mV input voltage headroom, which makes the 4.096V MAX874CPA ideal for use with a 5V supply. The applications of the MAX874CPA include Hand-Held Instruments, Battery-Operated Equipment, Power Supplies.

Parametrics

MAX874CPA absolute maximum ratings: (1)Supply Voltage:24V; (2)Output Short-Circuit Duration:Continuous to Either Supply; (3)CCOMP Input:-0.3V to VOUT; (4)TRIM Input:-0.3V to (VIN + 0.3V); (5)TEMP Output:-0.3V to (VIN + 0.3V); (6)Continuous Power Dissipation (TA = +70℃):727mW; (7)Operating Temperature Ranges:0℃ to +70℃; (8)Storage Temperature Range:-65℃ to +150℃; (9)Junction Temperature Range (Tj):-65℃ to +160℃; (10)Lead Temperature (soldering, 10sec):+300℃.

Features

MAX874CPA features: (1)Output Voltage:4.096V ±0.2%; (2)Wide Operating Voltage Range:4.3V to 20V; (3)10μA Max Supply Current; (4)40ppm/℃ Max Drift Over Extended Temp. Range; (5)Line Regulation Over Temp.:75μV/V; (6)Load Regulation Over Temp.:1.0mV/mA Max; (7)±500μA Sink/Source Current.

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

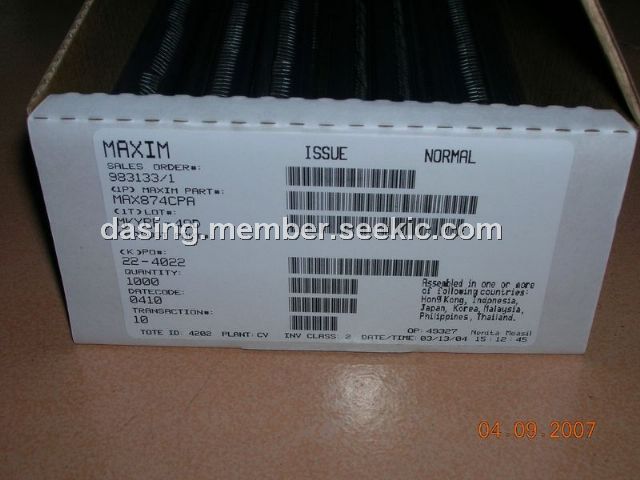

MAX874CPA
MAX874CPA
Maxim Integrated Products
Voltage & Current References
Data Sheet
Negotiable
MAX874CPA+
MAX874CPA+
Maxim Integrated Products
Voltage & Current References
Data Sheet
Negotiable
