Product Summary

The SM8S36A is a Surface Mount Automotive Transient Voltage Suppressor. It uses in sensitive electronics protection against voltage transients induced by inductive load switching and lighting, especially for automotive load dump protection application.

Parametrics

SM8S36A absolute maximum ratings: (1)Peak pulse power dissipation: with 10/1000 μs waveform:6600W, with 10/10 000 μs waveform:5200W; (2)Power dissipation on infinite heatsink at TC = 25℃:8.0 W; (3)Peak forward surge current 8.3 ms single half sine-wave:700 A; (4)Operating junction and storage temperature range:-55℃ to +175℃.

Features

SM8S36A features: (1)Patented PAR construction; (2)Available in uni-directional polarity only; (3)Low leakage current; (4)Low forward voltage drop; (5)High surge capability; (6)Meets ISO7637-2 surge specification (varied by test condition); (7)Meets MSL level 1, per J-STD-020, LF maximum peak of 245℃; (8)Component in accordance to RoHS 2002/95/EC and WEEE 2002/96/EC.

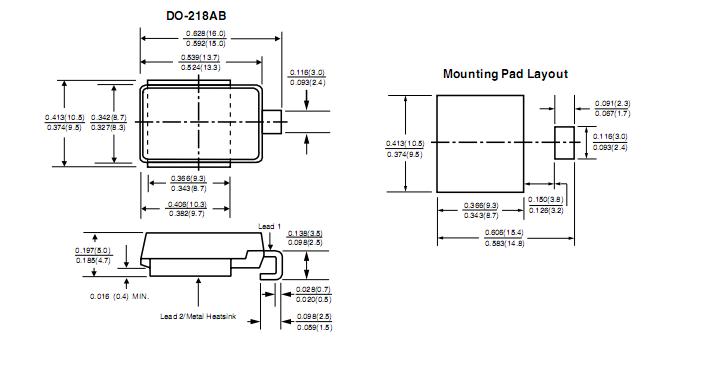

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

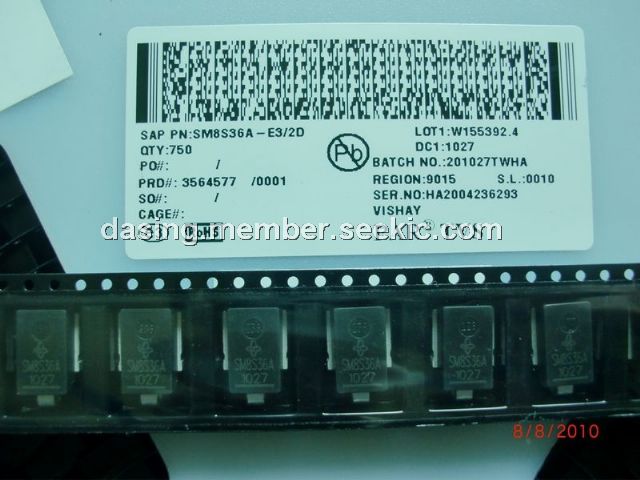

SM8S36A/2D
SM8S36A/2D

Vishay Semiconductors

TVS Diodes - Transient Voltage Suppressors 8W 36V Unidirect

Data Sheet

Negotiable
SM8S36A-E3/2D
SM8S36A-E3/2D

Vishay Semiconductors

TVS Diodes - Transient Voltage Suppressors 8W 36V Unidirect

Data Sheet

0-1: $2.40
1-10: $2.34
10-50: $2.21
50-100: $1.94
100-750: $1.32
SM8S36AHE3/2D
SM8S36AHE3/2D

Vishay Semiconductors

TVS Diodes - Transient Voltage Suppressors 8.0W 36V 5% Unidir

Data Sheet

0-365: $1.84
365-750: $1.52
750-1500: $1.40
1500-3000: $1.25
