Product Summary
The CLAA057VA01CW is a Silicon Limiter Diode. The device provides passive receiver protection over a wide range of frequencies from 100 MHz to over 30 GHz.
Parametrics
Absolute maximum ratings: (1)Reverse voltage:Minimum rated breakdown voltage; (2)Forward current:200mA ; (3)Junction temperature:–65℃ to +175℃; (4)Storage temperature:–65℃ to +200℃.
Features
Features: (1)Established Skyworks limiter diode process ; (2)High power, mid-range, and cleanup designs ; (3)Low insertion loss: 0.1 dB @ 10 GHz ; (4)Power handling to +66 dBm ; (5)Tight control of I layer base width ; (6)Mesa and planar chip designs.

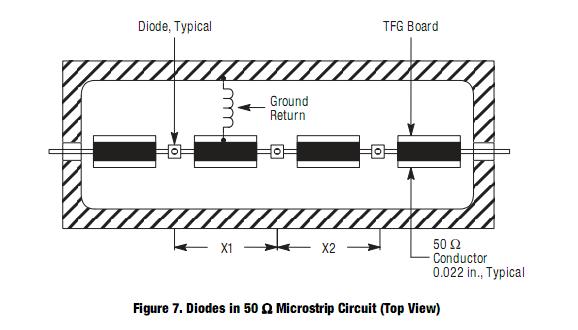

Diagrams
