Product Summary

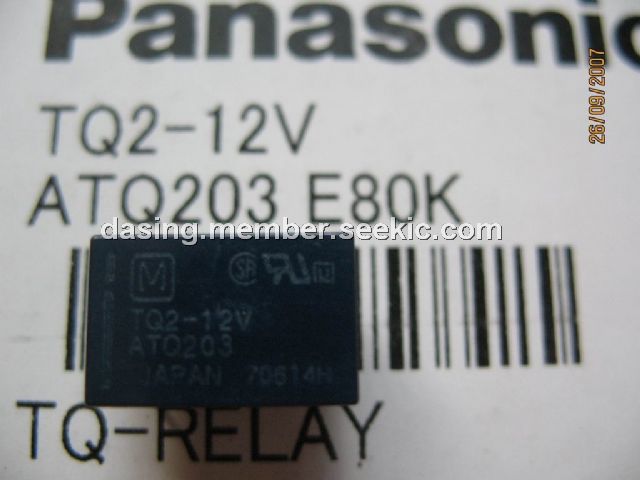

The TQ2-12V is a low profile 2 form C relay.

Parametrics

TQ2-12V specifications: (1)Initial contact resistance, max.(By voltage drop 6 V DC 1A): 50 mΩ; (2)Nominal switching capacity(resistive load): 1 A 30 V DC; 0.5 A 125 V AC; (3)Max. switching power(resistive load): 30 W, 62.5 V A; (4)Max. switching voltage: 110 V DC, 125 V AC; (5)Max. switching current: 1 A; (6)Min. switching capacity*1: 10 μA 10 mV DC.

Features

TQ2-12V features: (1)High sensitivity: 2 Form C: 140 mW power consumption (single side stable type); 4 Form C: 280 mW power consumption (single side stable type); (2)Surge voltage withstand: 1500 V FCC Part 68; (3)Sealed construction allows automatic washing; (4)Self-clinching terminal also available; (5)M.B.B. contact types available.

Diagrams

TQ2-12V dimensions

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
TQ2-12V
TQ2-12V
Panasonic Electric Works
Low Signal Relays - PCB 1A 12VDC DPDT NON-LATCHING PCB
Data Sheet
0-1: $2.01
1-25: $1.80
25-50: $1.63
50-100: $1.37
TQ2-12V-3
TQ2-12V-3
Panasonic Electric Works
Low Signal Relays - PCB Low Profile Sign 1 FormA 30VDC
Data Sheet
0-1: $1.81
1-25: $1.66
25-50: $1.48
50-100: $1.25
