Product Summary

The 74AHCT123APW is a Dual retriggerable monostable multivibrator with reset. It is pin compatible with Low power Schottky TTL (LSTTL). The74AHCT123APW is specified in compliance with JEDEC standard no. 7A. The basic pulse time is programmed by selection of an external resistor (REXT) and capacitor (CEXT). Once triggered, the basic output pulse width may be extended by retriggering the gated active LOW-going edge input (nA) or the active HIGH-going edge input (nB).

Parametrics

74AHCT123APW absolute maximum ratings: (1)supply voltage:-0.5V to +7.0V; (2)input voltage:-0.5V to +7.0V; (3)input clamping current:-20mA; (4)output clamping current:±20 mA; (5)output current:±25 mA; (6)supply current:75 mA; (7)ground current:-75mA; (8)storage temperature:-65℃ to +150℃; (9)total power dissipation:500 mW.

Features

74AHCT123APW features: (1)All inputs have a Schmitt-trigger action; (2)Inputs accept voltages higher than VCC; (3)DC triggered from active HIGH or active LOW inputs; (4)Retriggerable for very long pulses up to 100 % duty factor; (5)Direct reset terminates output pulse; (6)For 74AHCT123A only: operates with TTL input levels; (7)ESD protection: HBM JESD22-A114E exceeds:2000 V, MM JESD22-A115-A exceeds:200 V, CDM JESD22-C101C exceeds:1000 V; (8)Multiple package options; (9)Specified from -40℃ to +85℃ and from -40℃ to +125℃.

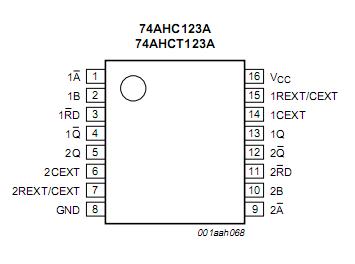

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
74AHCT123APW
74AHCT123APW

NXP Semiconductors

Monostable Multivibrator DUAL RETGIG MONOSTBL MULTI

Data Sheet

Negotiable
74AHCT123APW,112
74AHCT123APW,112

NXP Semiconductors

Monostable Multivibrator DUAL RETGIG MONOSTBL

Data Sheet

0-1: $0.20
1-25: $0.17
25-100: $0.14
100-250: $0.12
74AHCT123APW,118
74AHCT123APW,118

NXP Semiconductors

Monostable Multivibrator DUAL RETGIG MONOSTBL

Data Sheet

0-1: $0.08
1-25: $0.07
25-100: $0.07
100-250: $0.06
74AHCT123APW-T
74AHCT123APW-T

NXP Semiconductors

Monostable Multivibrator DUAL RETGIG MONOSTBL MULTI

Data Sheet

Negotiable
