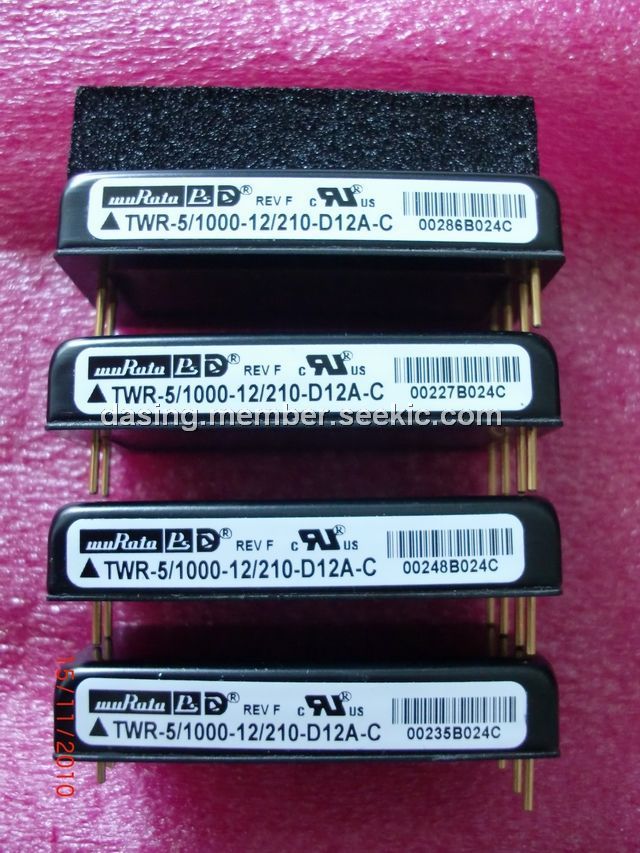

Product Summary

The TWR-5/1000-12/210-D12A-Cis a high-reliability, 2" x 1", 8-11 W, triple output DC/DC converter.

Parametrics

Absolute maximum ratings: (1)Input Voltage:"D12A" Models 22 Volts; (2)Input Reverse-Polarity Protection: Current must be <6A. Brief duration only. Fusing recommended.; (3)Output Overvoltage Protection: +5V Output: 6.8 Volts, limited duration; ±12V Outputs: ±13 Volts, limited duration; ±15V Outputs: ±16 Volts, limited duration; (4)Output Current: Current limited. Max. current and short-circuit duration model dependent.; (5)Storage Temperature: –40 to +105℃; (6)Lead Temperature (soldering, 10 sec.): +300℃.

Features

Features: (1)The smallest, full-featured triples; (2)Low cost! Highly reliable!; (3)Proven SMT-on-pcb construction; (4)Qual tested; HALT tested; EMC tested; (5)Output voltages: +5V/±12V or +5V/±15V; (6)Four input voltage ranges: 4.7-7V, 9-18V, 18-36V or 36-72V; (7)Small packages, 2" x 1" x 0.375"; (8)–40 to +100℃ operating temperature; (9)Fully isolated, 1500Vdc guaranteed; (10)Guaranteed efficiencies to 82%; (11)Designed to meet UL1950 and EN60950; (12)Modifications and customs for OEM’s.

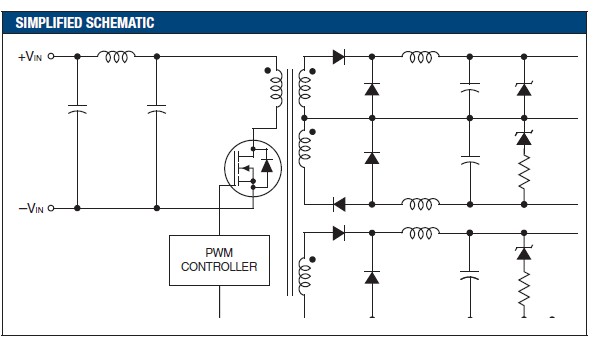

Diagrams
