Product Summary

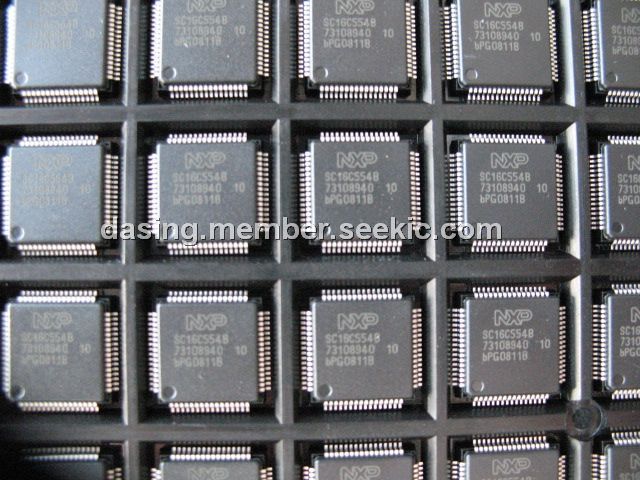

The SC16C554BIB64 is a 4-channel Universal Asynchronous Receiver and Transmitter (QUART) used for serial data communications. Its principal function is to convert parallel data into serial data and vice versa. The UART can handle serial data rates up to 5 Mbit/s. It comes with an Intel or Motorola interface.
Parametrics
Absolute maximum ratings: (1)VCC, supply voltage: -7V max; (2)Vn, voltage at any pin GND: -0.3VCC to + 0.3V; (3)Tamb, ambient temperature: -40 +85℃; (4)Tstg, storage temperature: -65 to +150℃; (5)Ptot(pack), total power dissipation per package: -500mW max.
Features
Features: (1)4 channel UART; (2)5 V, 3.3 V and 2.5 V operation; (3)Industrial temperature range (-40℃ to +85℃); (4)Up to 5 Mbit/s data rate at 5 V and 3.3 V, and 3 Mbit/s at 2.5 V; (5)5 V tolerant inputs; (6)16-byte transmit FIFO; (7)16-byte receive FIFO with error flags; (8)Programmable auto-RTS and auto-CTS: In auto-CTS mode, CTS controls transmitter; In auto-RTS mode, RxFIFO contents and threshold control RTS; (9)Automatic hardware flow control (RTS/CTS); (10)Software selectable baud rate generator.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 SC16C554BIB64 |
NXP Semiconductors |
UART Interface IC 16CB 2.5V-5V 4CH UART 16B FIFO |
Data Sheet |
Negotiable |
|
||||||||||||
|
SC16C554BIB64,128 |
NXP Semiconductors |
UART Interface IC 16CB 2.5V-5V 4CH |
Data Sheet |
|
|
||||||||||||
|
SC16C554BIB64,151 |
NXP Semiconductors |
UART Interface IC 4CH. UART 16B FIFO |
Data Sheet |
|
|
||||||||||||
|
SC16C554BIB64,157 |
NXP Semiconductors |
UART Interface IC 16CB 2.5V-5V 4CH |
Data Sheet |
|
|
||||||||||||
|
SC16C554BIB64-S |
NXP Semiconductors |
UART Interface IC 4CH. UART 16B FIFO |
Data Sheet |
Negotiable |
|
||||||||||||
|
SC16C554BIB64-F |
NXP Semiconductors |
UART Interface IC 16CB 2.5V-5V 4CH UART 16B FIFO |
Data Sheet |
Negotiable |
|
||||||||||||
