Product Summary

The 1SMA5932BT3G is 1.5 Watt Plastic Surface Mount Zener Voltage Regulator.

Parametrics

1SMA5932BT3G absolute maxing ratings: (1)DC Power Dissipation@TL=75℃, PD: 1.5W; Measured Zero Lead Length Derate above 75℃: 20mW/℃; Thermal Resistance, Junction-to-Lead RθJL: 50℃/W; (2)DC Power Dissipation@TA = 25℃ PD: 0.5W; Derate above 25℃: 4.0mW/℃; Thermal Resistance, Junction-to-Ambient RθJA: 250℃/W; (3)Operating and Storage Temperature Range TJ, Tstg: -65 to+150℃.

Features

1SMA5932BT3G features: (1)Standard Zener Breakdown Voltage Range - 3.3 V to 68 V; (2)ESD Rating of Class 3 (>16 kV) per Human Body Model; (3)Flat Handling Surface for Accurate Placement; (4)Package Design for Top Slide or Bottom Circuit Board Mounting; (5)Low Profile Package; (6)Ideal Replacement for MELF Packages; (7)Pb-Free Packages are Available.

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

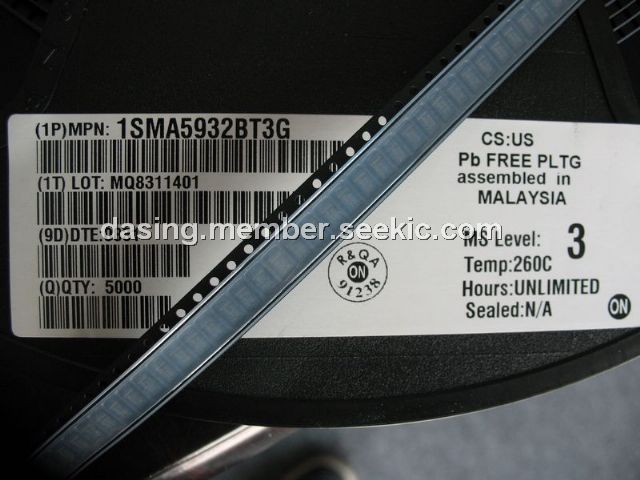

1SMA5932BT3G
1SMA5932BT3G
ON Semiconductor
Zener Diodes 20V 1.5W
Data Sheet
0-1: $0.37
1-25: $0.35
25-100: $0.31
100-500: $0.28
Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
1SMA10AT3
1SMA10AT3
ON Semiconductor
TVS Diodes - Transient Voltage Suppressors 10V 400W
Data Sheet
Negotiable
1SMA10AT3G
1SMA10AT3G
ON Semiconductor
TVS Diodes - Transient Voltage Suppressors 10V 400W Unidirectional
Data Sheet
0-1: $0.32
1-25: $0.22
25-100: $0.17
100-500: $0.12
1SMA10CAT3
1SMA10CAT3
ON Semiconductor
TVS Diodes - Transient Voltage Suppressors 10V 400W
Data Sheet
Negotiable
1SMA10CAT3G
1SMA10CAT3G
ON Semiconductor
TVS Diodes - Transient Voltage Suppressors 10V 400W Bidirectional
Data Sheet
0-1: $0.21
1-25: $0.17
25-100: $0.13
100-500: $0.10
1SMA110Z
1SMA110Z
Taiwan Semiconductor
Zener Diodes 110V
Data Sheet
0-1: $0.13
1-100: $0.11
100-500: $0.09
500-1000: $0.08
1SMA11AT3
1SMA11AT3
ON Semiconductor
TVS Diodes - Transient Voltage Suppressors 11V 400W
Data Sheet
Negotiable
