Product Summary

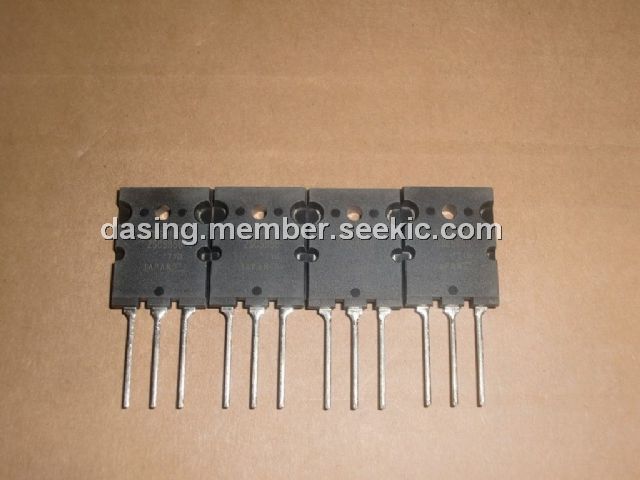

The 2SC5858 is a transistor.

Parametrics

2SC5858 absolute maximum ratings: (1)Collector-Base Voltage, VCBO: 1700 V ; (2)Collector-Emitter Voltage, VCEO: 750 V; (3)Emitter-Base Voltage, VEBO: 5 V; (4)Collector Current, DC IC: 22A; Pulse ICP: 44A; (5)Base Current, IB: 11 A; (6)Collector Power Dissipation PC: 200 W; (7)Junction Temperature, Tj: 150℃; (8)Storage Temperature Range, Tstg: -55~150℃.

Features

2SC5858 features: (1)High Voltage: VCBO = 1700 V; (2)Low Saturation Voltage: VCE (sat) = 1.5 V (Max); (3)High Speed: tf(2) = 0.1 μs (Typ.).

Diagrams

2SC5858 dimensions
