Product Summary

The 2SK941 is the Toshiba field effect transistor. The 2SK941 is widely used in high speed switching applications, such as relay drive, motor drive and DC-DC converter.

Parametrics

2SK941 maximum ratings: (1)Drain-source voltage: 100V; (2)Drain-gate voltage: 100V; (3)Gate-source voltage: ±20V; (4)Drain current: ID=0.6A, IDP=1.8A; (7)Drain power dissipation(Ta=25℃): PD=0.9W; (5)Channel temperature: Tch=150℃; (6)Storage temperature: Tstg=-55~150℃.

Features

2SK941 features: (1)4-volt gate drive; (2)Low drain-source ON resistance: RDS(ON)=0.95Ω(Typ); (3)High forward transfer admittance: 0.65S(Typ); (4)Low leakage cyrrent: IGSS=±3μA(Max.), VGA=±16V, IDSS=100μA(Max), VDS=100V; (5)Enhancement-mode: Vth=0.8~2.0V, VDS=10V, ID=1mA.

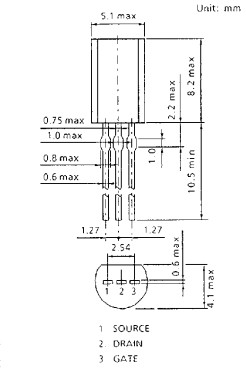

Diagrams
