Product Summary
The 3SK104 is the MOSFET transistor.
Parametrics
3SK104 absolute maximum ratings: (1)Drain to Source Voltage VDSX: 15 V; (2)Gate1 to Source Voltage VG1S: ±10 V; (3)Gate2 to Source Voltage VG2S: ±10V; (4)Drain Current ID: 35 mA; (5)Total Power Dissipation PT: 150 mW; (6)Channel Temperature Tch: 125 ℃; (7)Storage Temperature Tstg: –55 to +125 ℃.
Features
3SK104 features: (1)Suitable for use as RF amplifier in UHF TV tuner; (2)Low Crss : 0.02 pF TYP; (3)High GPS : 20 dB TYP; (4)Low NF : 1.1 dB TYP; (5)4 pin small mini mold package.

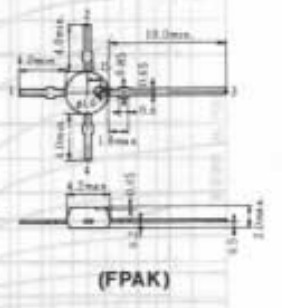

Diagrams
![]() |
