Product Summary

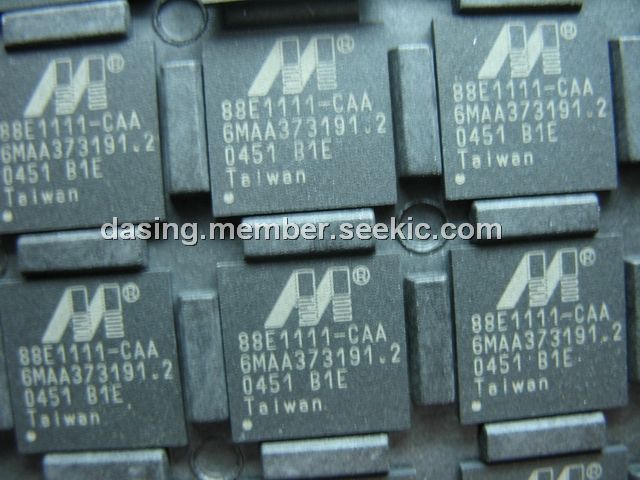

The Alaska Ultra 88E111-CAA Gigabit Ethernet Transceiver is a physical layer device for Ethernet 1000BASE-T, 100BASE-TX, and 10BASE-T applications. It is manufactured using standard digital CMOS process and contains all the active circuitry required to implement the physical layer functions to transmit and receive data on standard CAT 5 unshielded twisted pair.
Features
Features: (1)10/100/1000BASE-T IEEE 802.3 compliant; (2)Supports GMII, TBI, reduced pin count GMII (RGMII), reduced pin count TBI (RTBI), and serial GMII (SGMII) interfaces; (3)Integrated 1.25 GHz SERDES for 1000BASE-X fiber applications; (4)Four RGMII timing modes; (5)Energy Detect and Energy Detect+ low power modes; (6)Three loopback modes for diagnostics; (7)"Downshift" mode for two-pair cable installations; (8)Fully integrated digital adaptive equalizers, echo cancellers, and crosstalk cancellers; (9)Advanced digital baseline wander correction; (10)Automatic MDI/MDIX crossover at all speeds of operation; (11)Automatic polarity correction.
Diagrams
 |
 88E1011 |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
88E1011S |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
88E1011SA5-RCJ-C000 |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
88E1111-B2-BAB1C000 |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
88E1116R |
Other |
|
Data Sheet |
Negotiable |
|
||||
