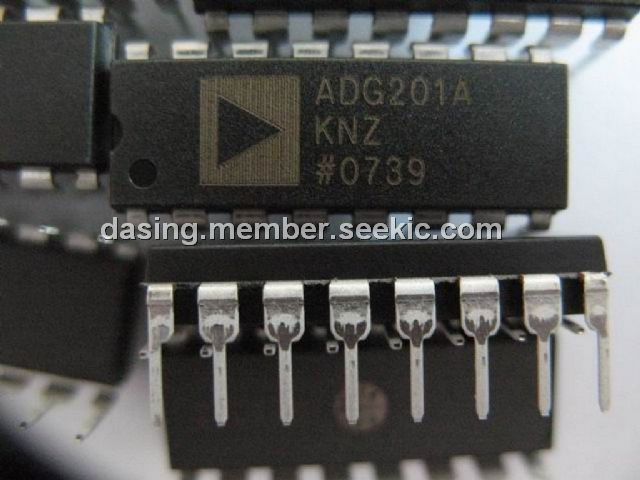

Product Summary

The ADG201AKNZ is a monolithic CMOS device comprising four independently selectable switched. It is designed on an enhanced IC2MOS process which gives an increased signal handling capability of ±15V. The ADG201AKNZ also features high switching speeds and low RON. It consists of four SPST switches. The exhibts break before makes switching action.

Parametrics

ADG201AKNZ absolute maximum ratings: (1)VDD to VSS: 44 V; (2)VDD to GND: 25 V; (3)VSS to GND: -25 V; (4)Analog inputs voltage at S, D: VSS-0.3V to VDD+0.3V; (5)continuous current, S or D: 30 mA; (6)pulsed current S or D 1ms duration, 10% duty cycle: 70 mA; (7)power dissipation: up to +75: 470 mW; (8)operating temperature: -40 to +85℃; (9)storage temperature range: -65 to +150℃; (10)lead temperature: +300℃.

Features

ADG201AKNZ features: (1)44V supply maximum rating; (2)±15 V Analog signal range; (3)low RON (60Ω); (4)low leakage (0.5nA); (5)break before make switching; (6)extended plastic temperature range (-40 to +85℃); (7)low power dissipation (33mW); (8)available in 16-lead DIP/SOIC and 20-lead PLCC/LCCC packages.

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
ADG201AKNZ
ADG201AKNZ

IC SWITCH QUAD SPST 16DIP
Data Sheet
0-1: $2.25
1-25: $1.81
25-100: $1.65
100-250: $1.49
250-500: $1.34
500-1000: $1.13
1000-2500: $1.07
Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
ADG201ABQ
ADG201ABQ
Analog Devices Inc
IC SW ANALOG QUAD SPST 16CDIP
Data Sheet
1-25: $2.77
25-100: $2.34
100-250: $2.25
250-500: $2.20
500-1000: $2.17
ADG201AKN
ADG201AKN

IC SWITCH QUAD SPST 16DIP
Data Sheet
0-125: $1.90
ADG201AKNZ
ADG201AKNZ

IC SWITCH QUAD SPST 16DIP
Data Sheet
0-1: $2.25
1-25: $1.81
25-100: $1.65
100-250: $1.49
250-500: $1.34
500-1000: $1.13
1000-2500: $1.07
ADG201AKP
ADG201AKP

IC SWITCH QUAD SPST 20PLCC
Data Sheet
0-98: $2.43
ADG201AKPZ
ADG201AKPZ

IC SWITCH QUAD SPST 20PLCC
Data Sheet
0-98: $2.10
ADG201AKPZ-REEL
ADG201AKPZ-REEL

IC SWITCH DUAL SPDT 20PLCC
Data Sheet
0-1000: $1.31
