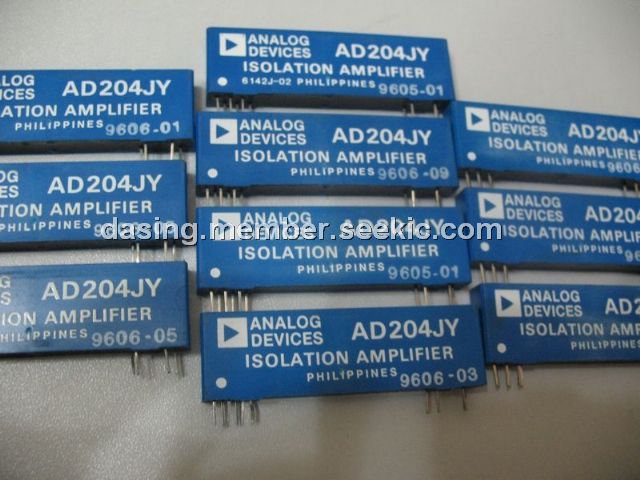

AD204JY

Miniature Isolation Amplifier, 35mW, 38SIP

Rated 5 Rating 5 | reviews | Write a review

Price:: US $15.00~50.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $15.00~50.00

PartNumber:: AD204JY

Brand:: Analog Devices - ADI | Pack: DIP | D/C: 96+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Sue ouyang's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-06-29

From Other Seller

Part Number:AD204JY
US $15.00 - 50.00
EKZE250ELL152MK25S

US $0.10 - 1.00 / Piece
(0) Remove
A50L-0001-0175

US $100.00 - 100.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

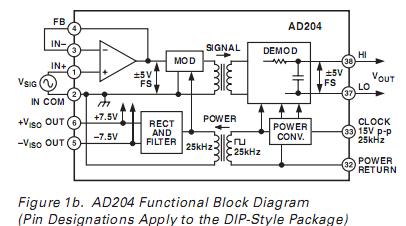

The AD204JY is a general purpose, two-port, transformer-coupled isolation amplifier that may be used in a broad range of applications where input signals must be measured, processed, and/or transmitted without a galvanic connection. The AD204JY provides total galvanic isolation between the input and output stages of the isolation amplifier through the use of internal transformer-coupling. The applications of the AD204JY include Multichannel Data Acquisition, Current Shunt Measurements, Motor Controls, Process Signal Isolation, High Voltage Instrumentation Amplifier.

Parametrics

AD204JY general specifications: (1)GAIN:Range 1 V/V–100 V/V, Error:± 0.5% typ (± 4% max), vs. Temperature:± 20 ppm/℃ typ (±45 ppm/℃ max), vs. Time:±50 ppm/1000 Hours, vs. Supply Voltage:±0.01%/V, Nonlinearity (G = 1 V/V):±0.05% max, Nonlinearity vs. Isolated Supply Load:±0.0015%/mA; (2)Input Voltage Range:± 5 V, Max lsolation Voltage (Input to Output): AC, 60 Hz, Continuous:750 V rms,Continuous (AC and DC):± 1000 V Peak, Isolation-Mode Rejection Ratio (IMRR) @ 60 Hz:; (3)RS ≤100Ω (HI and LO Inputs) G = 1 V/V:110 dB,G = 100 V/V:130 dB, RS≤l kΩ (Input HI, LO, or Both) G = 1 V/V:104 dB min, G = 100 V/V:110 dB min, Leakage Current Input to Output @ 240 V rms, 60 Hz:2 mA rms max; (4)Rated Performance temperature:0℃ to 70℃; (5)Operating temperature:–40℃ to +85℃; (6)Storage temperature:–40℃ to +85℃.

Features

AD204JY features: (1)Small Size: 4 Channels/lnch; (2)Low Power: 35 mW (AD204); (3)High Accuracy: ±0.025% Max Nonlinearity (K Grade); (4)High CMR: 130 dB (Gain = 100 V/V); (5)Wide Bandwidth: 5 kHz Full-Power (AD204); (6)High CMV Isolation: ±2000 V pk Continuous (K Grade)(Signal and Power); (7)Isolated Power Outputs; (8)Uncommitted Input Amplifier.
