Product Summary
Agilent’s ATF-34143-TR1G is a high dynamic range, low noise PHEMT housed in a 4-lead SC-70 (SOT-343) surface mount plastic package. Based on its featured performance, ATF-34143-TR1G is ideal for the first stage of base station LNA due to the excellent combination of low noise figure and high linearity[1]. The device is also suitable for applications in Wireless LAN, WLL/RLL, MMDS, and other systems requiring super low noise figure with good intercept in the 450 MHz to 10 GHz frequency range.
Parametrics
ATF-34143-TR1G absolute maximum ratings: (1)Drain - Source Voltage: 5.5V; (2)Gate - Source Voltage: -5V; (3)Gate Drain Voltage: -5V; (4)Total Power Dissipation: 725mW; (5)RF Input Power: 17dBm; (6)Channel Temperature: 160℃; (7)Thermal Resistance: 165℃.
Features

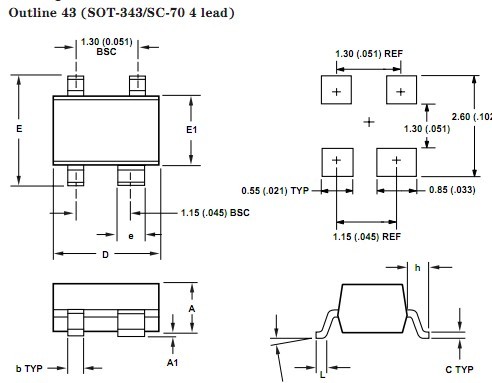

ATF-34143-TR1G features: (1)Low Noise Figure; (2)Excellent Uniformity in Product Specifications; (3)800 micron Gate Width; (4)Low Cost Surface Mount; (5)Small Plastic Package SOT-343 (4 lead SC-70); (6)Tape-and-Reel Packaging Option Available.
Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
ATF-34143-TR1G |
Avago Technologies |
Transistors RF GaAs Transistor GaAs Low Noise |
Data Sheet |
|
|
|||||||||||
