The C2905 is a silicon NPN epitaxial planar type transistor specifically designed for high power amplifiers applications in UHF band.
Parametrics
C2905 absolute maixmum ratings: (1)VCBO, collector to base voltage: 35v; (2)VEBO, emitter to base voltage: 4v; (3)VCEO, collector to emitter voltage: 17v; (4)IC, collector current: 15A; (5)PC, collector dissipation at TC=25℃: 120W; (6)Tj, junction temperature: 175℃; (7)Tstg, storage temperature: -55 to 175℃.
Features
C2905 features: (1)high power output, high gain: PO≧45w, Gpe≧4.8dB@VCC=12.5v, f=520MHZ, Pin=15w; (2)emitter ballasted consruction; (3)high ruggedness: ability to withstand more than 20:1 load VSWR when operated at Vcc=15.2v.PO=45w, f=520MHZ; (4)high reliability due to gold metalization die; (5)flange type ceramic package; (6)zin=1.2+j1.1Ω, zout=1.3+j1.0Ω@VCC=12.5v, f=520MHZ, po=45w.

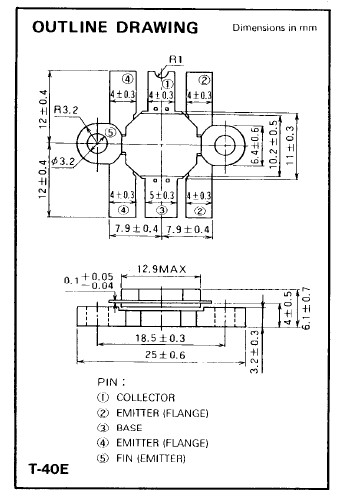

Diagrams
 |
