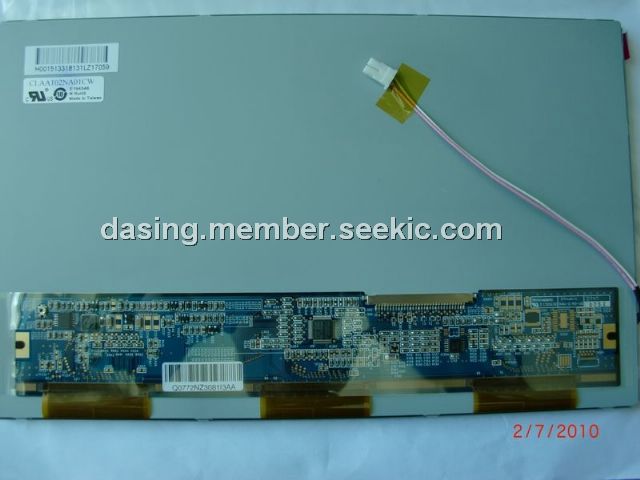

Product Summary

The CLAA102NA01CW is a 10.2 inch color TFT-LCD (Thin Film Transistor Liquid Crystal Display)module. It is composed of LCD panel, driver ICs ,control circuit and backlight. By applying 1024×600 images are displayed on the 10 inch diagonal screen. Display 262K colors by 6 Bit R.G.B signal input.

Parametrics

CLAA102NA01CW absolute maximum ratings: (1)Power Supply Voltage Vcc: -0.3 to 4.0 V; (2)Singal Input Voltage, RxIN0+ ~ RxIN2+, RxIN0- ~ RxIN2-, Rx CLK IN +/-: -0.3 to Vcc + 0.3 V; (3)Lamp Voltage, VL: 670 to 850 Vrms; (4)Lamp Current, IL: 5 7 mArms; (5)Lamp Frequency, FL: 40 80 KHz; (6)Static Electricity, VESDc: -200 to 200V; VESDm: -15K to 15KV; (7)ICC Rush Current, IRUSH: - TBD A max; (8)Operation Temperature, Top: -30 to 85℃; (9)Storage Temperature, Tstg: -40 to 95℃; (10)Discharge Time Lag, TD: 1 sec max.

Features

CLAA102NA01CW features: 1)Screen Brand: Chunghwa ; (2)Screen: CLAA102NA01CW Laptop Screen ; (3)Size: 10.2 inch; (4)Resolution: (1024 x 600) WSVGA ; (5)Backlight: 1 CCFL ; (6)Surface: Matte ; (7)Aspect Ratio: Wide (128:75) ; (8)Screen Type: Thin-film transistor (TFT) Active-matrix Liquid Crystal Display (LCD).

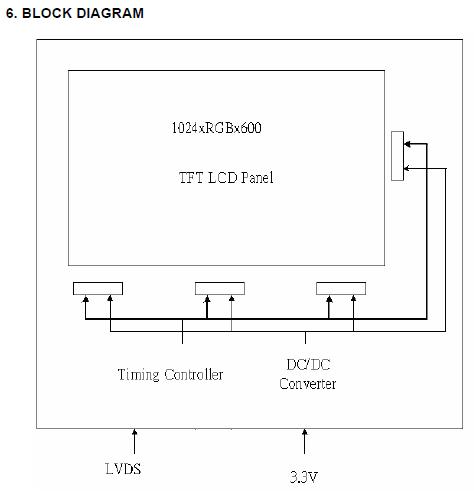

Diagrams
