Product Summary
The FQP8N80C is a N-Channel enhancement mode power field effect transistor. It is produced using proprietary, planar stripe, DMOS technology. This advanced technology has been especially tailored to minimize on-state resistance, provide superior switching performance, and withstand high energy pulse in the avalanche and commutation mode. The FQP8N80C is well suited for high efficiency switch mode power supplies.
Parametrics
FQP8N80C absolute maximum ratings: (1)VDSS, Drain-Source Voltage: 800 V; (2)ID, Drain Current - Continuous (TC = 25℃): 8A; Continuous (TC = 100℃) 5.1A; (3)IDM, Drain Current - Pulsed: 32A; (4)VGSS, Gate-Source Voltage: ±30 V; (5)EAS, Single Pulsed Avalanche Energy: 850 mJ; (6)IAR, Avalanche Current: 8 A; (7)EAR, Repetitive Avalanche Energy: 17.8 mJ; (8)dv/dt, Peak Diode Recovery dv/dt: 4.5 V/ns; (9)PD, Power Dissipation (TC = 25℃): 178W; Derate above 25℃: 1.43W/℃; (10)TJ, TSTG, Operating and Storage Temperature Range: -55 to +150℃; (11)TL, Maximum lead temperature for soldering purposes, 1/8 inch from case for 5 seconds: 300℃.
Features
FQP8N80C features: (1)8A, 800V, RDS(on) = 1.55Ω@VGS = 10 V; (2)Low gate charge ( typical 35 nC); (3)Low Crss ( typical 13 pF); (4)Fast switching; (5)100% avalanche tested; (6)Improved dv/dt capability.

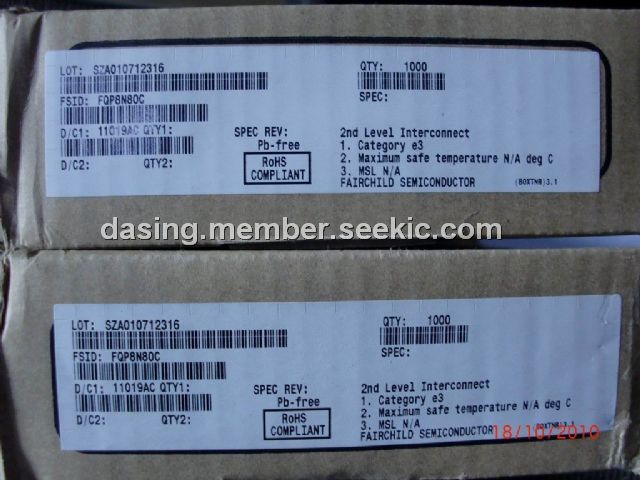

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 FQP8N80C |
Fairchild Semiconductor |
MOSFET 800V N-Ch Q-FET advance C-Series |
Data Sheet |
|
|
||||||||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||||||||
|
FQP85N06 |
Fairchild Semiconductor |
MOSFET 60V N-Channel QFET |
Data Sheet |
|
|
||||||||||||
 |
FQP8N25 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
|
FQP8N60C |
Fairchild Semiconductor |
MOSFET 600V N-Ch Q-FET advance C-Series |
Data Sheet |
|
|
||||||||||||
|
FQP8N60C_Q |
Fairchild Semiconductor |
MOSFET 600V N-Ch Q-FET advance C-Series |
Data Sheet |
Negotiable |
|
||||||||||||
|
FQP8N80C |
Fairchild Semiconductor |
MOSFET 800V N-Ch Q-FET advance C-Series |
Data Sheet |
|
|
||||||||||||
|
FQP8N90C |
Fairchild Semiconductor |
MOSFET 900V N-Ch Q-FET advance C-Series |
Data Sheet |
|
|
||||||||||||
