Product Summary

The L7810CV is a three-terminal positive regulator, which is available in TO-220, TO-220FP, TO-3 and D2PAK packages and several fixed output voltages, making it useful in a wide range of applications. The L7810CV can provide local on-card regulation, eliminating the distribution problems associated with single point regulation.

Parametrics

L7810CV absolute maximum ratings: (1)DC input voltage: 35 V for VO= 5 to 18 V, 40 V for VO= 20, 24 V; (2)Output current: Internally limited; (3)Power dissipation: Internally limited; (4)Storage temperature range -65 to 150 ℃; (5)Operating junction temperature range: 0 to 125 ℃.

Features

L7810CV features: (1)output current to 1.5A; (2)output voltages of 5; 5.2; 6; 8; 8.5; 9; 12; 15; 18; 24V; (3)thermal overload protection; (4)short circuit protection; (5)output transition soa protection.

Diagrams

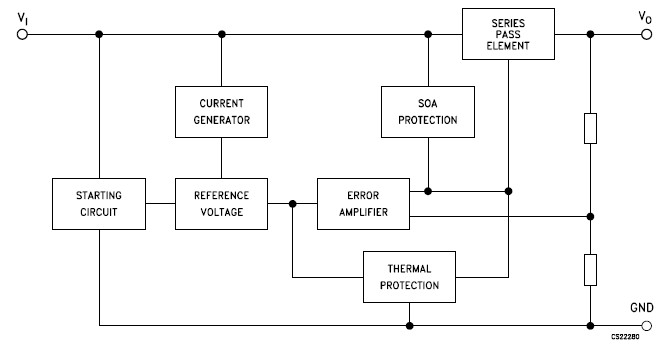

L7810CV block diagram
