Product Summary

The LM4041CIDCKR is a versatile, easy-to-use reference. It is suitable for a wide array of applications. It requires no external capacitors for operation and are stable with all capacitive loads. Additionally, the LM4041CIDCKR offers low dynamic impedance, low noise, and a low temperature coefficient to ensure a stable output voltage over a wide range of operating currents and temperatures. The LM4041CIDCKR uses fuse and Zener-zap reverse breakdown voltage trim during wafer sort to offer four output voltage tolerances, ranging from 0.1% (max) for the A grade to 1% (max) for the D grade. It is packaged in space-saving SC-70 and SOT-23-3 and requiring a minimum current of 45 mA (typ), it also is ideal for portable applications. The LM4041CIDCKR is characterized for operation over an ambient temperature range of –40 to 85℃.

Parametrics

LM4041CIDCKR absolute maximum ratings: (1)VZ, Continuous cathode voltage: 15 V max; (2)IZ, Continuous cathode current: –10 to 25 mA; (3); (4)qJA, Package thermal impedance: DBZ, package: 206℃/W; DCK package: 252 ℃/W; LP, package: 156℃/W; (5)TJ, Operating virtual junction temperature: 150 ℃ max; (6)Tstg, Storage temperature range: –65 to 150℃.

Features

LM4041CIDCKR features: (1)1.225-V Fixed and Adjustable Outputs (1.225 V to 10 V); (2)Tight Output Tolerances and Low Temperature Coefficient – Process Control: Max 0.1%, 100 ppm/℃-A Grade; Max 0.2%, 100 ppm/℃–B Grade; Max 0.5%, 100 ppm/℃-C Grade; Max 1.0%, 150 ppm/℃–D Grade; (3)Low Output Noise: 20 mVRMS (Typ); (4)Wide Operating Current Range: 45 mA (Typ) to 12 mA; (5)Stable With All Capacitive Loads; No Output Capacitor Required; (6)Available in: Industrial Temperature: –40℃ to 85℃; Extended Temperature: –40℃ to 125℃.

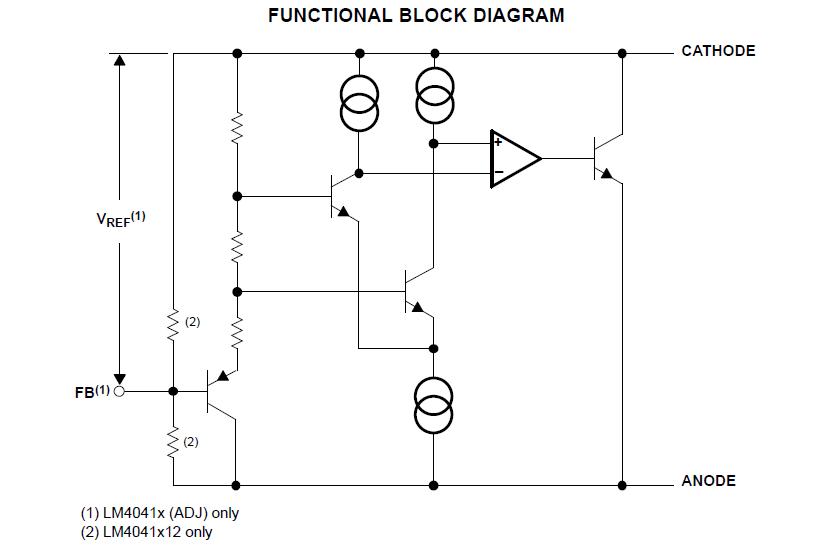

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
LM4041CIDCKR
LM4041CIDCKR

Texas Instruments

Voltage & Current References Adjustable Precision Mcrpwr Shunt .5% acc

Data Sheet

0-1: $0.49
1-25: $0.38
25-100: $0.34
100-250: $0.30
LM4041CIDCKRE4
LM4041CIDCKRE4

Texas Instruments

Voltage & Current References Adjustable Precision Mcrpwr Shunt .5% acc

Data Sheet

0-2000: $0.21
2000-3000: $0.19
3000-6000: $0.18
6000-12000: $0.18
LM4041CIDCKRG4
LM4041CIDCKRG4

Texas Instruments

Voltage & Current References Adj Prec Micropwr Shunt Vltg Ref

Data Sheet

0-2000: $0.21
2000-3000: $0.19
3000-6000: $0.18
6000-12000: $0.18
