Product Summary

The LRMS-TUX is a frequency mixer. The applications of it include: HF/VHF/UHF; instrumentation; cellular.

Parametrics

LRMS-TUX absolute maxing ratings: (1)Operating Temperature: -40℃ to 85℃; (2)Storage Temperature: -55℃ to 100℃; (3)RF Power: 50mW; (4)IF Current: 40mA.

Features

LRMS-TUX features: (1)low conversion loss, 5.83 dB typ; (2)excellent L-R isolation, 45 dB typ.

Diagrams

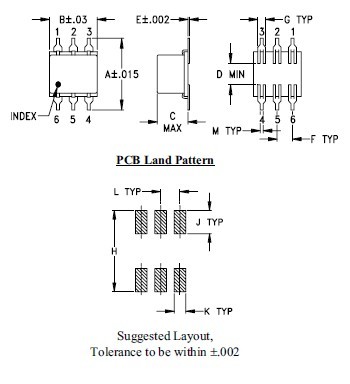

LRMS-TUX diagram
