Product Summary

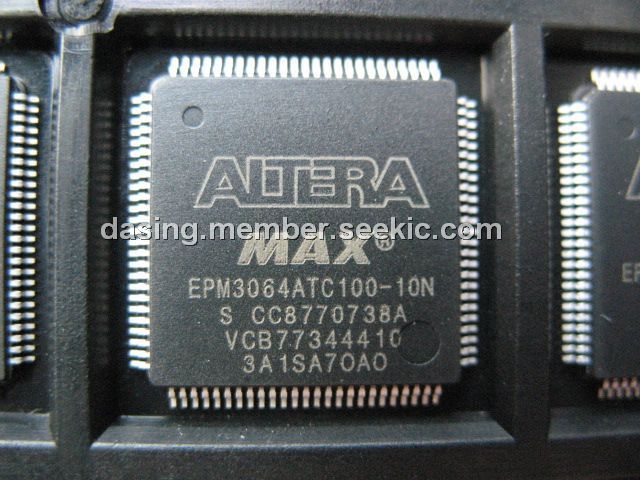

The EPM3064ATC100-10 is a Programmable Logic Device. It is a low–cost, high–performance device based on the Altera MAX architecture. Fabricated with advanced CMOS technology, the EEPROM–based MAX 3000A devices operate with a 3.3-V supply voltage and provide 600 to 10,000 usable gates, ISP, pin-to-pin delays as fast as 4.5 ns.
Parametrics
Absolute maximum ratings: (1)Supply voltage: –0.5 V min and 4.6 V max With respect to ground; (2)DC input voltage: –2.0 V min and 5.75 V max; (3)DC output current, per pin: –25 to 25 mA; (4)Storage temperature No bias: –65 to 150 ℃; (5)Ambient temperature: –65 to 135 ℃ at Under bias; (6)Junction temperature: 135 ℃ at PQFP and TQFP packages, under bias.
Features
Features: (1)High.performance, low.cost CMOS EEPROM.based programmable logic devices (PLDs) built on a MAXR architecture; (2)3.3-V in-system programmability (ISP) through the built.in IEEE Std. 1149.1 Joint Test Action Group (JTAG) interface with; (3)advanced pin-locking capability-ISP circuitry compliant with IEEE Std. 1532; (4)Built.in boundary-scan test (BST) circuitry compliant with IEEE Std. 1149.1-1990.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 EPM3064ATC100-10 |
|
IC MAX 3000A CPLD 64 100-TQFP |
Data Sheet |
|
|
||||||
|
EPM3064ATC100-10N |
|
IC MAX 3000A CPLD 64 100-TQFP |
Data Sheet |
|
|
||||||
