Product Summary

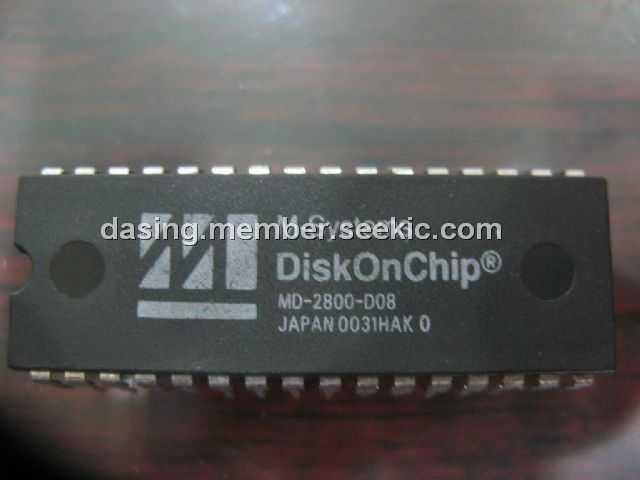

The MD-2800-D08 is a new generation high performance single-chip Flash disk. It provides a Flash disk in a standard 32-pin DIP package. The MD-2800-D08 also provides a Flash disk (BIOS expansion only) which does not require any bus, slot or connector. Simply insert the device into a 32-pin socket on your CPU board and with a minimal installation cost you will have a bootable Flash disk. The MD-2800-D08 is the optimal solution for single board computers. It is a small, fully functional, easy to integrate, plug and play Flash disk with very low power consumption.

Parametrics

MD-2800-D08 general specifications: (1)Compatibility: Full disk emulation; (2)Host OS Support:DOS 3.3 and up, Windows CE, Windows 3.1, 95, and NT, pSOS+, QNX, VxWorks, Customized to other environments using FLite; (3)Capacities: 8, 16, 24, 32, 48, 80, 144, 288 MB; (4)Package Type: 32-pin, 600 mil width, DIP JEDEC standar; (5)Current Consumption: Standby: 60 uA (typical), 100 uA (max), Read: 25 mA (typical), 40 mA (max), Write: 30 mA (typical), 40 mA (max); (6)Supply Voltage: 5 V (read and write); (7)Operating temperature: 0℃ to 70℃; (8)Storage Temperature: -45℃ to 100℃.

Features

MD-2800-D08 features: (1)Single-chip Plug & Play FTL Flash disk ; (2)8 to 288MB capacity, 8 MB is millennium version ; (3)Simple, easy to use interface ; (4)32-pin DIP JEDEC standard SRAM/EPROM/FLASH compatible package ; (5)Superior read/write speeds ; (6)ECC/EDC for high data reliability ; (7)5 V operation ; (8)Low power consumption ; (9)Full boot operability ; (10)Built-in TrueFFS/font> which provides full hard disk read/write compatibility ; (11)Operates with FLite (FAT-FTL/Lite) in environments without operating systems ; (12)Extensive O/S support-DOS, Windows, Windows 95 and Windows/font>CE. Additional support offered: pSOS+, QNX, VxWorks and others ; (13)Uses 8 KB memory window ; (14)Best cost/performance solution.
