Product Summary
The MHL8115 is an UHF linear amplifier. It is designed for linear amplifier applications in 50 Ohm systems requiring wide bandwidth, low noise, and low distortion. Internal DC blocking on RF ports reduces external component count and related circuit area. The MHL8115 utilizes push–pull circuit design.
Parametrics
MHL8115 absolute maximum ratings: (1)DC Supply Voltage VCC: 18Vdc; (2)RF Input Power Pin: +20 dBm; (3)Storage Temperature Range Tstg: –40 to +100 ℃; (4)Operating Case Temperature Range TC: –20 to +100 ℃.
Features
MHL8115 features: (1)Supply Voltage: 15 Vdc; (2)Third Order Intercept: 41.5 dBm Typ; (3)Power Gain: 17.5 dB Typ (@ 900 MHz); (4)Excellent Phase Linearity and Group Delay Characteristics; (5)50 Ohm Input/Output Impedances.

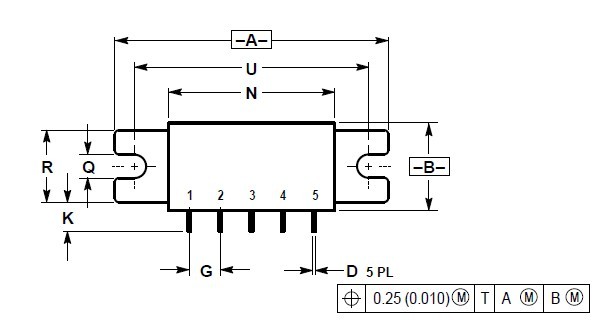

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 MHL8115 |
Other |
|
Data Sheet |
Negotiable |
|
||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||
|
MHL8115 |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
MHL8118 |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
MHL8018 |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
MHL8015 |
Other |
|
Data Sheet |
Negotiable |
|
||||
