Product Summary

The KSZ8893MQL is a highly integrated Layer-2 quality of service (QoS) switch with optimized bill of materials (BOM) cost for low port count, cost-sensitive 10/100Mbps switch systems.

Parametrics

Absolute maximum ratings: (1)Supply Voltage (VDDAR, VDDAP, VDDC): –0.5V to +2.4V, (VDDAT, VDDIO): –0.5V to +4.0V; (2)Input Voltage (All Inputs): –0.5V to +4.0V; (3)Output Voltage (All Outputs): –0.5V to +4.0V; (4)Lead Temperature (soldering, 10 sec.): 270℃; (5)Storage Temperature (TS): –55℃ to +150℃.

Features

Features: (1)Integrated switch with five MACs and five Fast Ethernet transceivers fully compliant to IEEE 802.3u standard; (2)Shared memory based switch fabric with fully nonblocking configuration; (3)10BASE-T, 100BASE-TX and 100BASE-FX modes (FX in Ports 4 and 5); (4)Dual MII configuration: MII-Switch (MAC or PHY mode MII) and MII-P5 (PHY mode MII); (5)VLAN ID tag/untag options, per-port basis; (6)Enable/disable option for huge frame size up to 1916 bytes per frame.

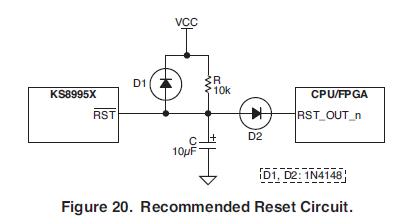

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

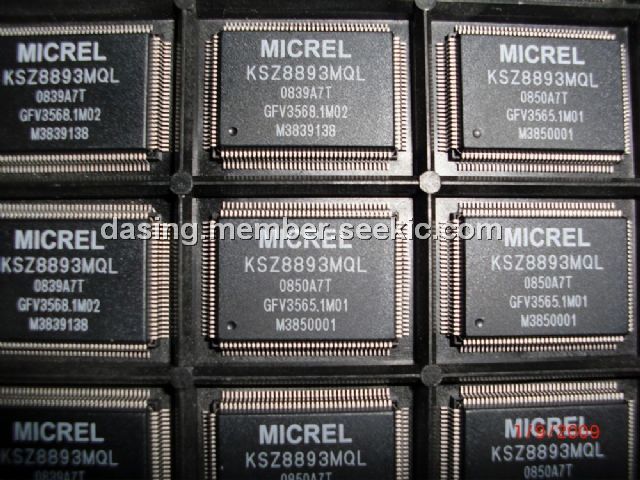

KSZ8893MQL
KSZ8893MQL


IC MANAGED SWITCH 10/100 128PQFP

Data Sheet

0-1: $5.59
1-25: $5.03
25-100: $4.46
100-250: $4.28
250-500: $4.19
KSZ8893MQL AM
KSZ8893MQL AM


IC MANAGED SW 10/100 128-PQFP

Data Sheet

0-1: $7.88
1-25: $7.10
25-100: $6.30
100-250: $6.04
250-500: $5.92
KSZ8893MQLI
KSZ8893MQLI


IC MANAGED SWITCH 10/100 128PQFP

Data Sheet

0-1: $6.95
1-25: $6.26
25-100: $5.55
100-250: $5.32
250-500: $5.21
KSZ8893MQL AM TR
KSZ8893MQL AM TR


IC MANAGED SWITCH 10/100 128PQFP

Data Sheet

0-350: $7.34
KSZ8893MQL-EVAL
KSZ8893MQL-EVAL


EVAL KIT EXPERIMENTAL KSZ8893MQL

Data Sheet

0-1: $279.30
