Product Summary

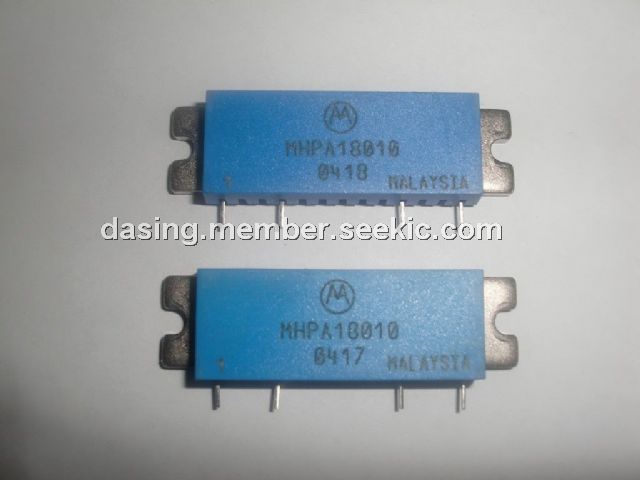

The MHPA18010N is a CDMA Band RF Linear LDMOS Amplifier. It is designed for Class AB amplifier applications in 50 ohm systems operating in the 1800 to 1900 MHz frequency band. A silicon FET design of the MHPA18010N provides outstanding linearity and gain. In addition, the excellent group delay and phase linearity characteristics are ideal for digital CDMA and GSM modulation systems.
Parametrics
MHPA18010N absolute maximum ratings: (1)DC Supply Voltage VDD: 30 Vdc; (2)RF Input Power (Single Carrier CW) Pin: +20 dBm; (3)Storage Temperature Range Tstg: - 40 to +100 ℃; (4)Operating Case Temperature Range TC: - 20 to +100 ℃.
Features
MHPA18010N features: (1)Excellent Phase Linearity and Group Delay Characteristics; (2)Ideal for Feedforward Base Station Applications; (3)N Suffix Indicates Lead-Free Terminations.

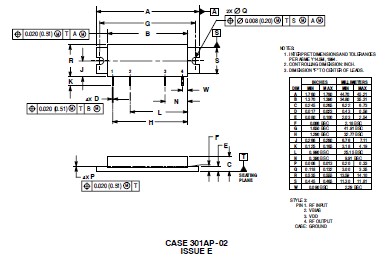

Diagrams
