Product Summary
The MRF6S19140H is a RF power field effect transistor. It is designed for PCN and PCS base station applications with frequencies from 1930 to 1990 MHz. Suitable for TDMA, CDMA and multicarrier amplifier applications. To be used in Class AB for PCN-PCS/cellular radio and WLL
applications.
Parametrics
MRF6S19140H absolute maximum ratings: (1)Drain-Source Voltage VDSS: -0.5, +68 Vdc; (2)Gate-Source Voltage VGS: -0.5, +12 Vdc; (3)Total Device Dissipation @ TC = 25℃ PD: 530W; Derate above 25℃ PD: 3W/℃ (4)Storage Temperature Range Tstg: -65 to +150 ℃; (5)Operating Junction Temperature TJ: 200℃; (6)CW Operation CW: 140W.
Features
MRF6S19140H features: (1)Characterized with Series Equivalent Large-Signal Impedance Parameters; (2)Internally Matched for Ease of Use; (3)Qualified Up to a Maximum of 32 VDD Operation; (4)Integrated ESD Protection; (5)Lower Thermal Resistance Package; (6)Designed for Lower Memory Effects and Wide Instantaneous Bandwidth Applications; (7)Low Gold Plating Thickness on Leads, 40μ Nominal.; (8)Pb-Free and RoHS Compliant; (9)In Tape and Reel. R3 Suffix = 250 Units per 56 mm, 13 inch Reel.

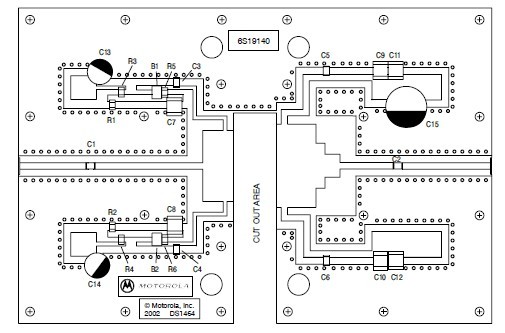

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 MRF6S19140HR3 |
Freescale Semiconductor |
Transistors RF MOSFET Power HV6 28V 29W LDMOS NI880H |
Data Sheet |
Negotiable |
|
||||||||
|
MRF6S19140HR5 |
Freescale Semiconductor |
Transistors RF MOSFET Power HV6 28V 29W LDMOS NI880H |
Data Sheet |
Negotiable |
|
||||||||
|
MRF6S19140HSR3 |
Freescale Semiconductor |
Transistors RF MOSFET Power HV6 28V29W LDMOS NI880HS |
Data Sheet |
|
|
||||||||
|
MRF6S19140HSR5 |
Freescale Semiconductor |
Transistors RF MOSFET Power HV6 28V29W LDMOS NI880HS |
Data Sheet |
Negotiable |
|
||||||||
