Product Summary

The PE4306 is a high-performance static CMOS prescaler with a fixed divide ratio of 2. Its operating frequency range is DC to 1500 MHz. The PE4306 operates on a nominal 3V supply and draws only 14mA. It is packaged in a small 8-lead plastic MSOP and is ideal for frequency scaling and clock generation solutions. The PE4306 is manufactured in Peregrine patented Ultra-Thin Silicon (UTSi.)CMOS process, offering the performance of GaAs with the economy and integration of conventional CMOS.

Parametrics

PE4306 absolute maximum ratings: (1)VDD Supply voltage: 4.0 V; (2)Pin Input Power: 15 dBm; (3)VIN Voltage on input: -0.3 VDD+0.3V; (4)TST Storage temperature range: -65 to 150 ℃; (5)TOP Operating temperature range: -55 to 125 ℃; (6)VESD ESD voltage (Human Body Model, MIL-STD 883): 2000 V.

Features

PE4306 features: (1)DC to 1500 MHz operation; (2)Fixed divide ratio of 2; (3)Low-power operation: 14mA typical @ 3.0 V; (4)Ultra small package: 8-lead plastic MSOP.

Diagrams

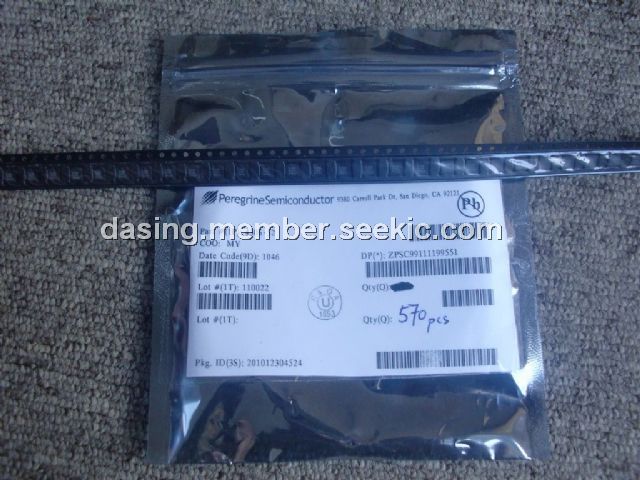

PE4306 diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
PE4306
PE4306
Other

Data Sheet
Negotiable
Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
PE4304
PE4304
Other

Data Sheet
Negotiable
PE4305
PE4305
Other

Data Sheet
Negotiable
PE4306
PE4306
Other

Data Sheet
Negotiable
PE43204MLIBA-Z
PE43204MLIBA-Z

IC RF DSA 2BIT 50 OHM 12-QFN
Data Sheet
0-3000: $0.66
3000-6000: $0.63
6000-15000: $0.61
15000-30000: $0.60
30000-75000: $0.58
PE43404MLI-Z
PE43404MLI-Z

IC RF DSA 4-BIT 75 OHM 20-QFN
Data Sheet
0-1: $2.51
1-10: $2.25
10-25: $2.03
25-100: $1.84
100-250: $1.67
250-500: $1.49
500-1000: $1.26
PE43501MLI-Z
PE43501MLI-Z

IC RF DSA 5BIT 50 OHM 32QFN
Data Sheet
0-3000: $1.98
