Product Summary

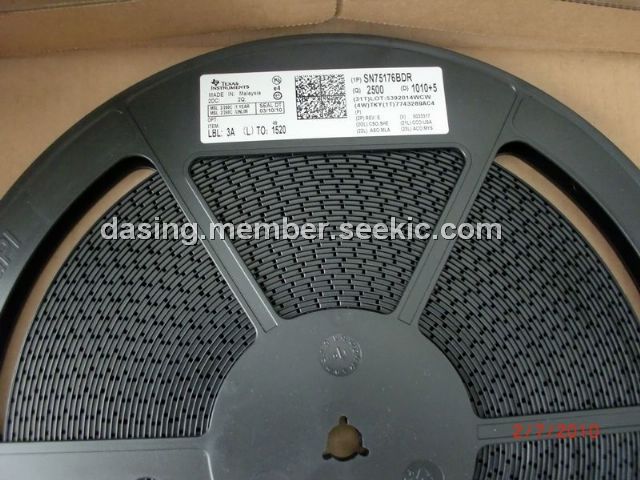

The SN75176BDR is a differential bus transceiver. It is designed for balanced transmission lines and meet ANSI Standards TIA/EIA-422-B and TIA/EIA-485-A and ITU Recommendations V.11 and X.27. The SN75176BDR combines a 3-state differential line driver and a differential input line receiver, both of which operate from a single 5-V power supply.

Parametrics

SN75176BDR absolute maximum ratings: (1)Supply voltage:7 V; (2)Voltage range at any bus terminal:–10 V to 15 V; (3)Enable input voltage:5.5 V ; (4)Package thermal impedance:97℃/W; (5)Operating virtual junction temperature:150℃; (6)Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds:260℃; (7)Storage temperature range:–65℃ to 150℃.

Features

SN75176BDR features: (1)Bidirectional Transceivers; (2)Meet or Exceed the Requirements of ANSI Standards TIA/EIA-422-B and TIA/EIA-485-A and ITU Recommendations V.11 and X.27; (3)Designed for Multipoint Transmission on Long Bus Lines in Noisy Environments; (4)3-State Driver and Receiver Outputs; (5)Individual Driver and Receiver Enables; (6)Wide Positive and Negative Input/Output Bus Voltage Ranges; (7)Driver Output Capability:±60 mA Max; (8)Thermal Shutdown Protection; (9)Driver Positive and Negative Current Limiting; (10)Receiver Input Impedance:12 kΩ Min; (11)Receiver Input Sensitivity:±200 mV; (12)Receiver Input Hysteresis:50 mV Typ; (13)Operate From Single 5-V Supply.

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
SN75176BDR
SN75176BDR

Texas Instruments

Buffers & Line Drivers Differential Bus

Data Sheet

0-1: $0.42
1-25: $0.30
25-100: $0.26
100-250: $0.22
SN75176BDRE4
SN75176BDRE4

Texas Instruments

Buffers & Line Drivers Differential Bus Transceiver

Data Sheet

0-1: $0.43
1-25: $0.34
25-100: $0.29
100-250: $0.26
SN75176BDRG4
SN75176BDRG4

Texas Instruments

Buffers & Line Drivers Differential Bus Transceiver

Data Sheet

0-1: $0.43
1-25: $0.34
25-100: $0.29
100-250: $0.26
