Product Summary

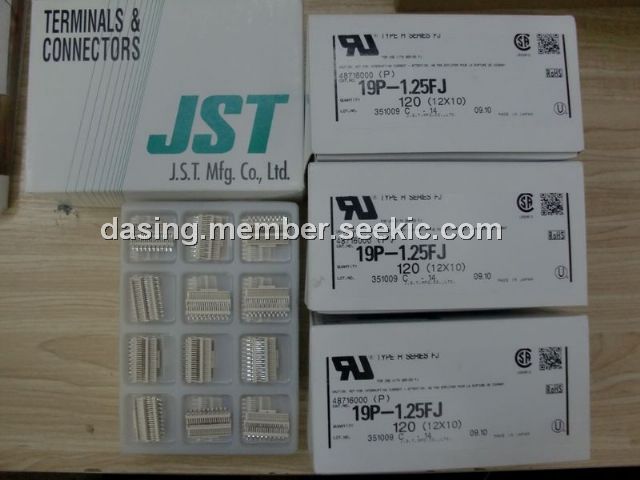

The 19P-1.25FJ connector is a 1.25mm pitch board-to-board connector. 19P-1.25FJ plug consists of a unique flexible hinge that absorbs circuit board misalignment. Board-to-board connection requires less labor and is more reliable because the connection can be made without the use of harnesses after the printed circuit boards are installed in their enclosures.

Parametrics

19P-1.25FJ specifications: (1)Current rating: 0.5A(1.0A :1.25FJ-N type) AC, DC; (2)Voltage rating: 50V AC, DC; (3)Temperature range: -25℃ to +85℃(including temperature rise in applying electrical current); (4)Short type: Initial value/40mΩ max. After environmental testing/60mΩ max.; (5)Long type: Initial value/70mΩ max. After environmental testing/90mΩ max. ; (6)1.25FJ-N type: Initial value/50mΩ max. After environmental testing/100mΩ max.; (7)Insulation resistance: 500MΩ min. ; (8)Withstanding voltage: 500V AC/minute ; (9)Applicable PC board thickness: 1.6mm.

Features

19P-1.25FJ features: (1)Low profile; (2)Allows connection after mounting; (3)Assures a reliable connection.

Diagrams
