Product Summary

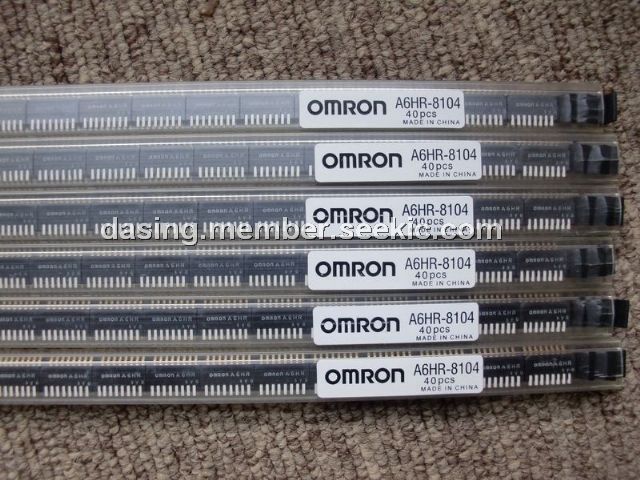

The A6HR-8104 is a Ultra-low Profile, Half-pitch, Surface-mounting DIP Switch.
Parametrics
A6HR-8104 electrical characteristics: (1)Switching capacity:25 mA at 24 VDC; (2)Minimum permissible load:10 μA at 3.5 VDC; (3)Contact resistance:200 mΩ max.; (4)Insulation resistance:100 MΩ min. (at 100 VDC); (5)Dielectric strength:300 VAC for 1 min between terminals; (6)Operating force:30 to 500 gf ( 0.3 to 4.9 N); (7)Vibration resistance:Malfunction durability:10 to 55 Hz, 1.5-mm double amplitude; (8)Shock resistance:Malfunction durability: 300 m/s2 min.; (9)Service life:Mechanical:1,000 operations min. Electrical:1,000 operations min.; (10)Ambient operating temperature:–20℃ to 70℃ at 60% RH max. (with no icing or condensation); (11)Ambient operating humidity 35% to 95% (at 5℃ to 35℃); (12)Weight 0.06 g (2 poles), 0.09 g (4 poles), 0.12 g (6 poles), 0.15 g (8 poles), 0.18 g (10 poles).
Features
A6HR-8104 features: (1)Very low profile of 1.55 mm; (2)Half-pitch (1.27-mm) design allows greater compactness and reduces mounting space by 63%. (compared with conventional models); (3)Washable, seal tape models available; (4)Embossed taping models available; (5)RoHS Compliant.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 A6HR-8104 |
Omron Electronics |
DIP Switches / SIP Switches 8P Half-Pitch, 2.3mm Piano-Type White Act |
Data Sheet |
|
|
||||||||||||
 |
A6HR-8104-P |
Omron Electronics |
DIP Switches / SIP Switches Dip Switch |
Data Sheet |
|
|
||||||||||||
|
A6HR-8104-PM |
Omron Electronics |
DIP Switches / SIP Switches Dip Switch |
Data Sheet |
|
|
||||||||||||
