Product Summary
The 1N5711 is a schottky barrier switching diode.
Parametrics
1N5711 absolute maxing ratings: (1)Peak Repetitive Reverse Voltage VRRM: 70 V; (2)RMS Reverse Voltage VR(RMS): 49 V; (3)Forward Continuous Current IFM: 15 mA; (4)Power Dissipation (Note 1) Pd: 400 mW; (5)Thermal Resistance, Junction to Ambient Air RθJA: 300 ℃/W; (6)Operating Temperature Range Tj: -55 to +125 ℃; (7)Storage Temperature Range TSTG: -55 to +150 ℃.
Features
1N5711 features: (1)Ultra-Fast Switching Speed; (2)High Reverse Breakdown Voltage; (3)Low Forward Voltage Drop; (4)Guard Ring Junction Protection.

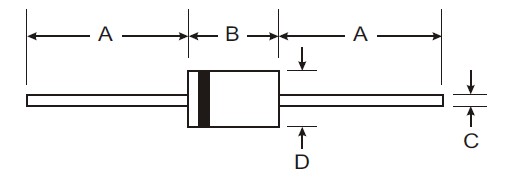

Diagrams
Image | Part No | Mfg | Description | ![]() |
Pricing (USD) |
Quantity | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |
![]() 1N5711 |
![]() STMicroelectronics |
![]() Schottky (Diodes & Rectifiers) 15mA 70 Volt |
![]() Data Sheet |
![]()
|
|
||||||||||||
![]() |
![]() 1N5711#T25 |
![]() Avago Technologies |
![]() Schottky (Diodes & Rectifiers) 70 VBR 2 pF |
![]() Data Sheet |
![]() Negotiable |
|
||||||||||||
![]() |
![]() 1N5711#T50 |
![]() Avago Technologies |
![]() Schottky (Diodes & Rectifiers) 70 VBR 2 pF |
![]() Data Sheet |
![]() Negotiable |
|
||||||||||||
![]() |
![]() 1N5711-TR |
![]() Vishay Semiconductors |
![]() Schottky (Diodes & Rectifiers) 15mA 70 Volt |
![]() Data Sheet |
![]() Negotiable |
|
||||||||||||
![]() |
![]() 1N5711W |
![]() Other |
![]() |
![]() Data Sheet |
![]() Negotiable |
|
||||||||||||
![]() |
![]() 1N5711W-7 |
![]() Diodes Inc. |
![]() Schottky (Diodes & Rectifiers) 70V 250mW |
![]() Data Sheet |
![]() Negotiable |
|
||||||||||||
![]() |
![]() 1N5711W-7-F |
![]() Diodes Inc. |
![]() Schottky (Diodes & Rectifiers) 70V 250mW |
![]() Data Sheet |
![]()
|
|
||||||||||||
![]() |
![]() 1N5711WS |
![]() Other |
![]() |
![]() Data Sheet |
![]() Negotiable |
|
