Product Summary

The 3SK74 is a MES field EFFECT transistor.

Parametrics

3SK74 absolute maximum ratings: (1)Drain to Source Voltage VDSX: 20 V; (2)Gate1 to Source Voltage VG1S: ±10V; (3)Gate2 to Source Voltage VG2S: ±10V; (4)Drain Current ID: 25 mA; (5)Total Power Dissipation PT: 200 mW; (6)Channel Temperature Tch: 125 ℃; (7)Storage Temperature Tstg: –65 to +125 ℃.

Features

3SK74 features: (1)Suitable for use as RF amplifier in UHF TV tuner; (2)Low Crss : 0.03 pF TYP; (3)High GPS : 22 dB TYP; (4)Low NF : 2.0 dB TYP; (5)4 pin small mini mold package.

Diagrams

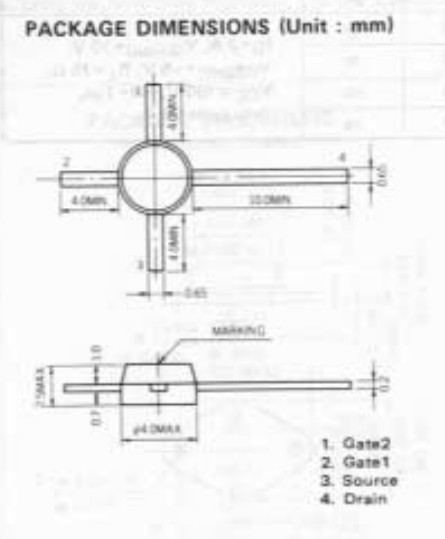

3SK74 package dimension
