Product Summary
The ADS1278IPAPT is a Quad/Octal, Simultaneous Sampling, 24-Bit Analog-to-Digital Converter. It is offered in identical packages, permitting drop-in expandability. Traditionally, industrial delta-sigma ADCs offering good drift performance use digital filters with large passband droop. As a result, the ADS1278IPAPT limited signal bandwidth and are mostly suited for dc measurements. High-resolution ADCs in audio offer larger usable bandwidths, but the offset and drift specifications are significantly weaker than respective industrial counterparts. The applications of the ADS1278IPAPT include: Vibration/Modal Analysis, Multi-Channel Data Acquisition, Acoustics/Dynamic Strain Gauges, Pressure Sensors.
Parametrics
ADS1278IPAPT absolute maximum ratings: (1)AVDD to AGND: –0.3 to +6.0 V; (2)DVDD, IOVDD to DGND: –0.3 to +3.6 V; (3)AGND to DGND: –0.3 to +0.3 V; (4)Input current Momentary: 100 mA; Continuous: 10 mA; (5)Analog input to AGND: –0.3 to AVDD + 0.3 V; (6)Digital input or output to DGND: –0.3 to DVDD + 0.3 V; (7)Maximum junction temperature: +150 ℃; (8)Operating temperature range: –40 to +105 ℃; (9)Storage temperature range: –60 to +150 ℃.
Features
ADS1278IPAPT features: (1)Simultaneously Measure Four/Eight Channels; (2)Up to 128kSPS Data Rate; (3)Linear Phase Digital Filter; (4)SPI or Frame-Sync Serial Interface; (5)Low Sampling Aperture Error; (6)Modulator Output Option (digital filter bypass); (7)Analog Supply: 5V; (8)Digital Core: 1.8V; (9)I/O Supply: 1.8V to 3.3V.

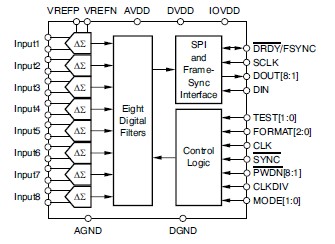

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 ADS1278IPAPT |
Texas Instruments |
ADC (A/D Converters) Quad 128kHz Simul 24B Delta Sigma ADC |
Data Sheet |
|
|
||||||||||||
|
ADS1278IPAPTG4 |
Texas Instruments |
ADC (A/D Converters) Quad 128kHz 24B Delta Sigma |
Data Sheet |
|
|
||||||||||||
