Product Summary

The BYW29-200 is a glass passivated high efficiency rectifier diode in a plastic envelope, featuring low forward voltage drop, ultra-fast recovery times and soft recovery characteristic. The BYW29-200 is intended for use in switched mode power supplies and high frequency circuits in general where low conduction and switching losses are essential.

Parametrics

BYW29-200 absolute maximum system: (1)IF(AV) Average forward current1 square wave; d = 0.5; Tmb ≤ 128 ℃: 8 A; (2)sinusoidal; a = 1.57; Tmb ≤ 130 ℃: 7.3 A; (3)IF(RMS) RMS forward current: 11.3 A; (4)IFRM Repetitive peak forward current t = 25 ms; d = 0.5; Tmb 128 ℃: 16 A; (5)IFSM Non-repetitive peak forward current t = 10 ms: 80 A; (6) t = 8.3 ms: 88 A; (7) I2t for fusing t = 10 ms: 32 A2s; (8)Tstg Storage temperature: -40 to 150 ℃; (9)Tj Operating junction temperature: 150 ℃.

Features

BYW29-200 features: (1)VRRM Repetitive peak reverse voltage: 100 to 200 V; (2)VF Forward voltage: 0.895 V; (3)IF(AV) Forward current: 8 A; (4)trr Reverse recovery time: 25 ns.

Diagrams

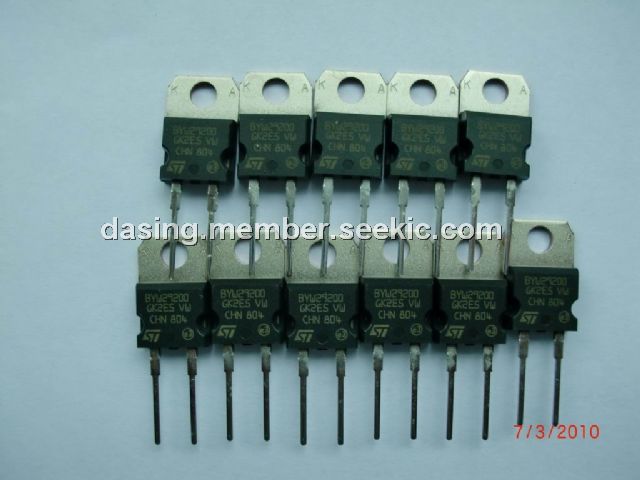

BYW29-200 package

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
BYW29-200
BYW29-200
STMicroelectronics
Rectifiers 8.0 Amp 200 Volt
Data Sheet
Negotiable
BYW29-200/45
BYW29-200/45
Vishay Semiconductors
Rectifiers 200 Volt 8.0A 25ns Single Glass Pass
Data Sheet
Negotiable
BYW29-200-E3/45
BYW29-200-E3/45
Vishay Semiconductors
Rectifiers 8.0 Amp 200 Volt
Data Sheet
0-1: $0.61
1-10: $0.53
10-100: $0.46
100-250: $0.41
BYW29-200G
BYW29-200G
ON Semiconductor
Rectifiers 200V 8A UltraFast
Data Sheet
0-1: $0.56
1-25: $0.44
25-100: $0.33
100-500: $0.28
BYW29-200HE3/45
BYW29-200HE3/45
Vishay Semiconductors
Rectifiers 200 Volt 8.0A 25ns Single Glass Pass
Data Sheet
0-1: $0.62
1-10: $0.55
10-100: $0.47
100-250: $0.42
