Product Summary

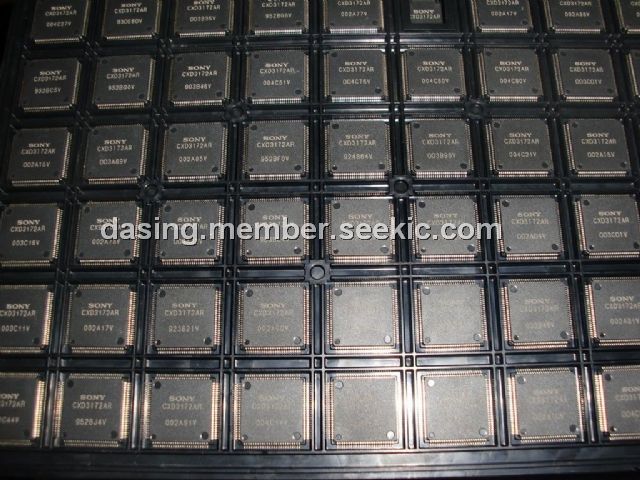

The CXD3172AR is a signal processor LSI for Ye, Cy, Mg and G single CCD color cameras. In addition to basic camera signal processing functions, it includes an AE/AWB detection circuit, a sync signal generation circuit and an external sync circuit, etc. The applicaitons of the CXD3172AR include industrial CCD cameras and multimedia CCD cameras.
Parametrics
CXD3172AR absolute maximum ratings: (1)supply votlage, VDD: VSS-0.5 to 4.6V; AVD: VSS-0.5 to 4.6V; VH: VL-0.5 to VL+26.0V; (2)input votlage, VI: VSS-0.5 to VDD+0.5V; (3)output votlage, VO: VSS-0.5 to VDD+0.5V; (4)operating temperature, Topr: -20 to 75℃; (5)storage temperature, Tstg: -55 to 150℃.
Features
CXD3172AR features: (1)generates timing pulses to drive the single CCD image sensor; (2)supports NTSC/PAL modes; (3)supports to 510H/760H system CCD image sensor; (4)built-in 10-bit A/D converter; (5)built-in EVR (3ch); (6)analog composite output; (7)supports external sync functions; (8)AE/AWB detector.
Diagrams
 |
