Product Summary
The PC357N1TJ00F is a Mini-flat Package, General Purpose Photocoupler. It contains an IRED optically coupled to a phototransistor. It is packaged in a 4-pin Mini-flat package. Input-output isolation voltage(rms) is 3.75kV. Collector-emitter voltage is 80V and CTR is 50% to 600% at input current of 5mA. The applications of the PC357N1TJ00F include Hybrid substrates that require high density mounting and Programmable controllers.
Parametrics
PC357N1TJ00F absolute maximum ratings: (1)Forward current:50mA; (2)Peak forward current:1A; (3)Power dissipation:70mW; (4)Collector-emitter voltage:80V; (5)Emitter-collector voltage:6V; (6)Collector current:50mA; (7)Collector power dissipation:150mW; (8)Total power dissipation:170mW; (9)Isolation voltage:3.75kV; (10)Operating temperature:-30℃ to +100℃; (11)Storage temperature:-40℃ to +125℃; (12)Soldering temperature:260℃; (13)Rever voltage:6V.
Features
PC357N1TJ00F features: (1)4-pin Mini-flat package; (2)Double transfer mold package (Ideal for Flow Soldering); (3)High collector-emitter voltage (VCEO : 80V); (4)Current transfer ratio (CTR) : MIN. 50% at IF=5mA, VCE=5V; (5)Several CTR ranks available; (6)High isolation voltage between input and output(Viso(rms) :3.75kV).

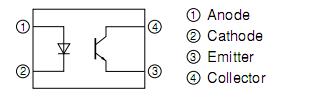

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

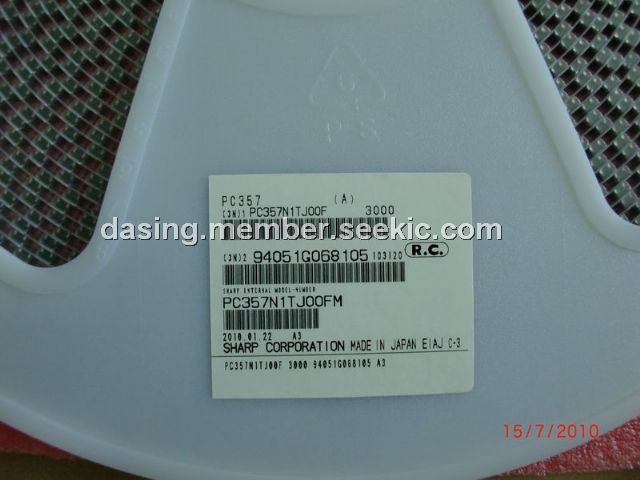

PC357N1TJ00F |
Sharp Microelectronics |
Transistor Output Optocouplers 80-160% CTR ranked PC357NTJ000F |
Data Sheet |
|
|
|||||||||||||
